    M4070 • 20° • Shell Mills • Inch

    Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge

    Material Number6921222

    ISO Catalog IDM4070U600Z08S200LN20ANSI Catalog IDM4070U600Z08S200LN20

    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    Open expanded view
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA+0
    M4070 - 20° - Shell Mills - Inch 6921222 - WIDIA
    Generic representation
    List Price
    C$1,694.16/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • M Stainless Steel
    • K Cast Iron
    • S High-Temp Alloys
    • Face MillingFace Milling
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

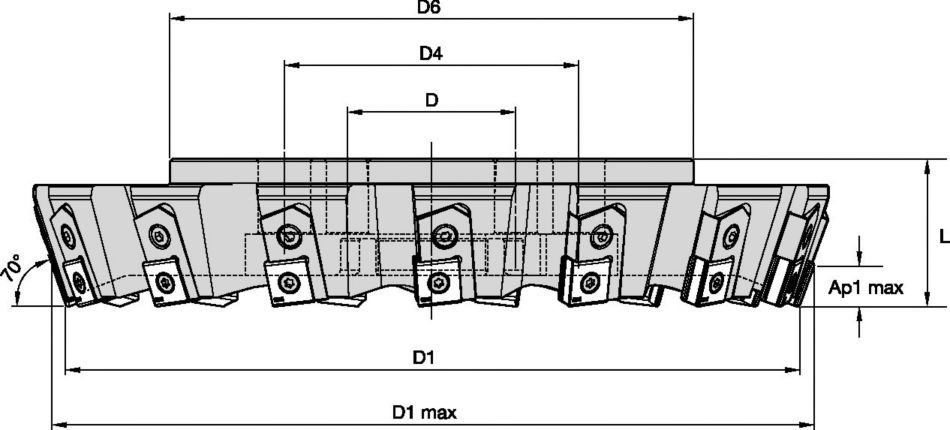

    Drawings for 6921222
    Metric
    Inch
    Material Number6921222
    ISO Catalog IDM4070U600Z08S200LN20
    ANSI Catalog IDM4070U600Z08S200LN20
    [D1] Effective Cutting Diameter152.4 mm
    [D1] Effective Cutting Diameter6 in
    [D1MAX] Maximum Cutting Diameter165.1432 mm
    [D1MAX] Maximum Cutting Diameter6.5017 in
    [D] Adapter / Shank / Bore Diameter50.8 mm
    [D] Adapter / Shank / Bore Diameter2 in
    [D6] Hub Diameter 123.825 mm
    [D6] Hub Diameter 4.875 in
    [L] Overall Length 60.452 mm
    [L] Overall Length 2.38 in
    [L1] Gage Length60.452 mm
    [L1] Gage Length2.38 in
    [AP1MAX] 1st Maximum Cutting Depth17.3 mm
    [AP1MAX] 1st Maximum Cutting Depth0.6811 in
    Number of Inserts8
    Coolant SupplyN
    Weight Pounds12.9
    See all Product Variants

    Workpiece Materials

    • Steel
    • Stainless Steel
    • Cast Iron
    • High-Temp Alloys

    Uses and application

    • Face MillingFace Milling

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets
    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    SMC-CV form B/AD
    SMC-CV form B/AD
    3640220
    CV50BSMC200240
    CV50BSMC200240
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    SMC-CV form B/AD
    SMC-CV form B/AD
    3640221
    CV50BSMC200400
    CV50BSMC200400
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    SMC-CV form B/AD
    SMC-CV form B/AD
    3640222
    CV50BSMC200600
    CV50BSMC200600
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    SMC-CV form B/AD
    SMC-CV form B/AD
    3640223
    CV50BSMC200800
    CV50BSMC200800
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    SMC Lock IN-BT Form B/AD
    SMC Lock IN-BT Form B/AD
    3653821
    BT50BSMC200236
    BT50BSMC200236
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    HSK100A Shell Mill Adapter • Inch
    HSK100A Shell Mill Adapter • Inch
    3763077
    HSK100ASMC200250
    HSK100ASMC200250
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    SMC • Shell Mill Adapters • Inch
    SMC • Shell Mill Adapters • Inch
    3955379
    KM80ATCSMC200216
    KM80ATCSMC200216
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    HSK125A Shell Mill Adapter • Inch
    HSK125A Shell Mill Adapter • Inch
    5902753
    HSK125ASMC200400
    HSK125ASMC200400
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID
    Grade

    M4070 • LNGX-MH
    M4070 • LNGX-MH
    6852417
    LNGU201012SNMH
    LNGU201012SNMH
    WK15CM
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    M4070 • LNGX-MH
    M4070 • LNGX-MH
    6852418
    LNGU201012SNMH
    LNGU201012SNMH
    WP35CM
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    KLS-20 SHELL MILL LOCK SCREW
    KLS-20 SHELL MILL LOCK SCREW
    1020578
    KLS20
    KLS20
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Spare Part ANTI-SEIZE LUBRICANT
    Spare Part ANTI-SEIZE LUBRICANT
    1022197
    ASL3GT
    ASL3GT
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    INSERT SCR M6-1.0 x 18 T25
    INSERT SCR M6-1.0 x 18 T25
    1127019
    MS1162
    MS1162
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    WRENCH DIN 911 SW 4
    WRENCH DIN 911 SW 4
    1138315
    170.004
    170.004
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    INSERT SCR M6-1.0 x 18 H4
    INSERT SCR M6-1.0 x 18 H4
    2018535
    12148037200
    12148037200
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Spare Part 667; Kraftkant Handle -T25
    Spare Part 667; Kraftkant Handle -T25
    2585812
    SFSTORXRHANDDRIVERT25
    SFSTORXRHANDDRIVERT25
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
