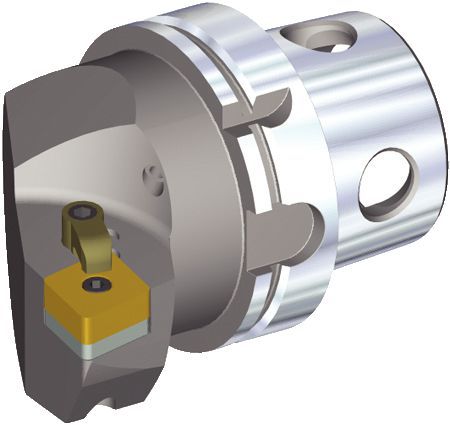

MCLN 95°

M-Clamping

Metric
Inch
SAP Material Number 5337811
ISO Catalog Number KM4X100MCLNR25
ANSI Catalog Number KM4X100MCLNR25
[F] F Dimension 63 mm
[F] F Dimension 2.48 in
Gage Insert CN..250924/CN..866
Weight Pounds 9.88
Weight Kilograms 4.48
[L1] Tool Length 100 mm
[L1] Tool Length 3.937 in
[DM] Minimum Bore Diameter 120 mm
[DM] Minimum Bore Diameter 4.724 in
See all Product Variants

Uses and application

  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Shank: KM4X™Shank: KM4X™

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys

Spare Parts for MCLN 95°

Spare Part
    CLAMP SCR M10 / M10 x 35.05 CLAMP SCR M10 / M10 x 35.05
    CLAMP SCR M10 / M10 x 35.05
    Spare Part
      LOCKING PIN M12X1.25 LOCKING PIN M12X1.25
      LOCKING PIN M12X1.25
      Spare Part
        SHIM SHIM
        SHIM
        Spare Part
          COOLANT TUBE WRENCH COOLANT TUBE WRENCH
          COOLANT TUBE WRENCH
          Spare Part
            KM4X100 COOLANT ASSEMBLY UNIT KM4X100 COOLANT ASSEMBLY UNIT
            KM4X100 COOLANT ASSEMBLY UNIT
