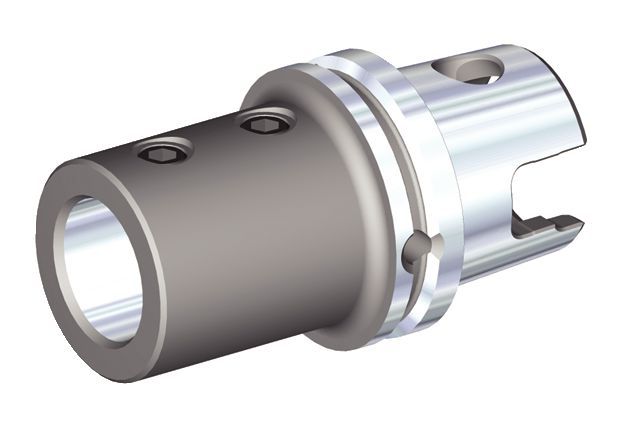

    Top Cut Plus™ Adapter

    Top Cut Plus™ Adapters

    Material Number2231625

    ISO Catalog IDKM63XMZDAT3275YANSI Catalog IDKM63XMZDAT3275Y

    DAT-KM-XMZ Metric Tooling Systems - 2231625 - WIDIA
    DAT-KM-XMZ Metric Tooling Systems - 2231625 - WIDIA
    DAT-KM-XMZ Metric Tooling Systems - 2231625 - WIDIA
    Open expanded view
    DAT-KM-XMZ Metric Tooling Systems - 2231625 - WIDIA
    DAT-KM-XMZ Metric Tooling Systems - 2231625 - WIDIA
    Generic representation
    List Price
    C$1,137.39/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Shank - KM-XMZShank - KM-XMZ
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 2231625
    Metric
    Inch
    Material Number2231625
    ISO Catalog IDKM63XMZDAT3275Y
    ANSI Catalog IDKM63XMZDAT3275Y
    GradeW
    [D1] Adapter / Shank / Bore Diameter32 mm
    [D1] Adapter / Shank / Bore Diameter1.2598 in
    [D2] Body Diameter 1 Workpiece Side 50 mm
    [D2] Body Diameter 1 Workpiece Side 1.969 in
    [L1] Gage Length75 mm
    [L1] Gage Length2.953 in
    [L9] Clamping Length 63.5 mm
    [L9] Clamping Hole Length 2.5 in
    Clamp Screw ID Drive Size6 mm
    Torque Newton Meters40
    Weight Kilograms1.09
    See all Product Variants

    Uses and application

    • Shank - KM-XMZShank - KM-XMZ
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models
