      WIDIA™ Inserts • VCGT-AL • Machining Aluminum
      WIDIA™ Inserts • VCGT-AL • Machining Aluminum
      WIDIA™ Inserts • VCGT-AL • Machining Aluminum
      WIDIA™ Inserts • VCGT-AL • Machining Aluminum
      Download CAD Drawings
      SDS

      VCGT-AL • Inserts for Aluminum

      WIDIA™ Inserts • VCGT-AL • Machining Aluminum

      Metric
      Inch
      SAP Material Number 6968763
      ISO Catalog Number VCGT160408AL
      ANSI Catalog Number VCGT332AL
      Grade WU05PT

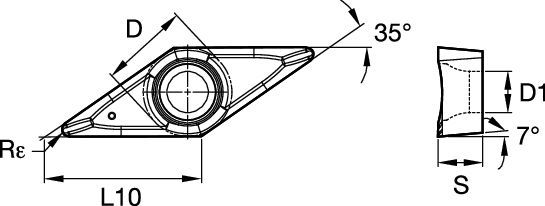

      [D] Insert IC Size 9.5250 mm
      [D] Insert IC Size .3750 in
      [L10] Insert Cutting Edge Length 16.6060 mm
      [L10] Insert Cutting Edge Length .6538 in
      [S] Insert Thickness 4.7620 mm
      [S] Insert Thickness .1875 in
      [Rε] Corner Radius 0.8000 mm
      [Rε] Corner Radius .0312 in
      [D1] Insert Hole Size 4.4000 mm
      [D1] Insert Hole Size .1732 in
      See all Product Variants

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys

      Grades

      • WU05PT
        WU05PT

        Coated carbide. PVD AlTiN-coated grade with microfine substrate and highly wear-resistant coating. Suitable for finish turning in aluminum and other non-ferrous materials and also steels, stainless steel, and high-temp alloys with reliability in continuous cuts with suitable edge preparation.

        P Steel
        S High-Temp Alloys
        K Cast Iron
        M Stainless Steel
        N Non-Ferrous
