| Product # | 3484692 |
| ISO Catalog Number | 510220007.. |
| ANSI Catalog Number | 510220007.. |
| Grade | UNCOATED |
| Adapter Style Machine Side | Straight-Cylindrical |

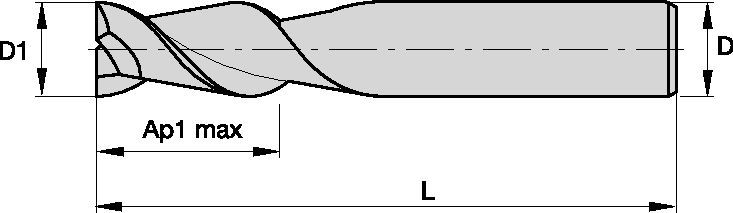

| [D1]Effective Cutting Dia mm | 20 |
| [D]Adapter/Shank/Bore Dia mm | 20,0 |
| [AP1MAX]1st Max Cut Depth mm | 38 |
| [L] Overall Length Metric | 104 |
| Product # | ISO Catalog Number | ANSI Catalog Number | Grade | Adapter Style Machine Side | [D1]Effective Cutting Dia mm | [D]Adapter/Shank/Bore Dia mm | [AP1MAX]1st Max Cut Depth mm | [L] Overall Length Metric |
|---|---|---|---|---|---|---|---|---|
| 3107859 | 510206002.. | 510206002.. | UNCOATED | Straight-Cylindrical | 6 | 6,0 | 16 | 50 |
| 3107860 | 510204001.. | 510204001.. | UNCOATED | Straight-Cylindrical | 4 | 4,0 | 12 | 50 |
| 3484680 | 510201500.. | 510201500.. | UNCOATED | Straight-Cylindrical | 1,500 | 3,0 | 6 | 38 |
| 3484681 | 510202000.. | 510202000.. | UNCOATED | Straight-Cylindrical | 2 | 3,0 | 8 | 38 |
| 3484682 | 510202500.. | 510202500.. | UNCOATED | Straight-Cylindrical | 2,500 | 3,0 | 9 | 38 |
| 3484683 | 510203000.. | 510203000.. | UNCOATED | Straight-Cylindrical | 3 | 3,0 | 12 | 38 |
| 3484684 | 510205001.. | 510205001.. | UNCOATED | Straight-Cylindrical | 5 | 5,0 | 14 | 50 |
| 3484685 | 510205002.. | 510205002.. | UNCOATED | Straight-Cylindrical | 5 | 6,0 | 14 | 50 |
| 3484686 | 510208003.. | 510208003.. | UNCOATED | Straight-Cylindrical | 8 | 8,0 | 20 | 63 |
| 3484687 | 510210004.. | 510210004.. | UNCOATED | Straight-Cylindrical | 10 | 10,0 | 22 | 76 |
| 3484688 | 510212005.. | 510212005.. | UNCOATED | Straight-Cylindrical | 12 | 12,0 | 25 | 76 |
| 3484689 | 510214014.. | 510214014.. | UNCOATED | Straight-Cylindrical | 14 | 14,0 | 32 | 83 |
| 3484690 | 510216006.. | 510216006.. | UNCOATED | Straight-Cylindrical | 16 | 16,0 | 32 | 89 |
| 3484691 | 510218018.. | 510218018.. | UNCOATED | Straight-Cylindrical | 18 | 18,0 | 38 | 100 |
| 3484692 | 510220007.. | 510220007.. | UNCOATED | Straight-Cylindrical | 20 | 20,0 | 38 | 104 |
| P | |
| M | |
| K | |
| N | ● |
| H | |
| S | |
| C | |
| UNCOATED |
38570
Schneideckenausführung: Ebene Stirnfläche
Schräg-Eintauchfräsen Ins Volle
Side Milling/Shoulder Milling: Square End
Spiralwinkel: 45°
Nutenfräsen: Ebene Stirnfläche| Material Group |  |  |  | ||||||||||||||
| For Side Milling (A) and Slotting (B) | uncoated | Recommended feed per tooth (fz = mm/th) for side milling (A). For slotting (B), reduce fz by 20%. | |||||||||||||||
| A | B | Cutting Speed vc m/min | D1 Diameter | ||||||||||||||
| ap | ae | ap | min | max | mm | 1,5 | 2,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| N | 1 | 1,5 x D | 0,5 x D | 1 x D | 500 | – | 2000 | fz | 0,014 | 0,018 | 0,036 | 0,054 | 0,072 | 0,090 | 0,108 | 0,144 | 0,180 |
| – | 2 | 1,5 x D | 0,5 x D | 1 x D | 500 | – | 1500 | fz | 0,012 | 0,016 | 0,032 | 0,049 | 0,065 | 0,081 | 0,097 | 0,130 | 0,162 |
