Planfräser • M1200 Mini

15° • Hohe Vorschübe • Aufschraubfräser • metrisch

Features and benefits
  • Twelve cutting edges.

  • First choice for low depth-of-cut face milling.

  • High-Feed capability.
Product specifications
Product # 4136875
ISO Catalog Number M1200HF025Z03M16HN07
ANSI Catalog Number M1200HF025Z03M16HN07

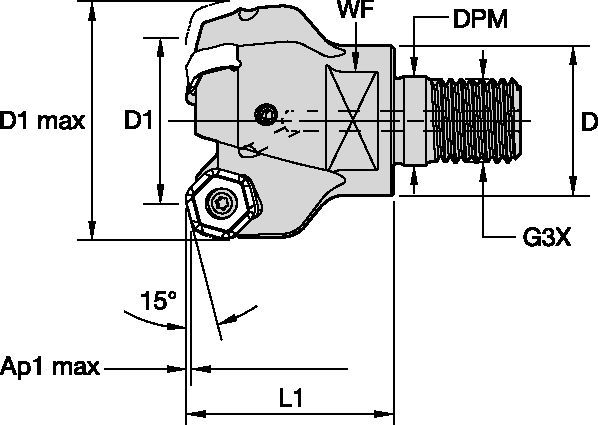

[D1]Effective Cutting Dia mm 25
[D1MAX]Maximum Cutting Dia mm 39,13
[D]Adapter/Shank/Bore Dia mm 29,0
[DPM]Pilot Dia Machine Side mm 17
[G3X]CL_CONN_THD_SIZE_MS_EXT M16
[L1]Gage Length Metric 32
[WF] Width of Flat Metric 22
[AP1MAX]1st Max Cut Depth mm 1,700
Number of Inserts 3
Max RPM 20000
Coolant Supply Yes
Weight Kilograms .16
Need help? Contact our customer service team.
Contact us

15° • Hochvorschub • aufschraubbarer Schaftfräser • metrisch

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [D1]Effective Cutting Dia mm [D1MAX]Maximum Cutting Dia mm [D]Adapter/Shank/Bore Dia mm [DPM]Pilot Dia Machine Side mm [G3X]CL_CONN_THD_SIZE_MS_EXT [L1]Gage Length Metric [WF] Width of Flat Metric [AP1MAX]1st Max Cut Depth mm Number of Inserts Max RPM Coolant Supply Weight Kilograms
4136875 M1200HF025Z03M16HN07 M1200HF025Z03M16HN07 25 39,13 29,0 17 M16 32 22 1,700 3 20000 Yes .16

Product Usage

Uses and application

  • Schaft – Aufschraubbar
  • Planfräsen
  • Fräsen – Innere Kühlmittelzuführung

Inserts and Holder Bodies for M1200 Mini • 15° • aufschraubbarer Schaftfräser • metrisch

HNGJ-LDJ • HN0704
HNGJ-LD • HN0704
HNPJ-GD • HN0704
HNPJ-HD • HN0704
M1200 Mini Hohe Vorschübe • Zylinderschaft
M1200 Mini • 15° • Hochvorschub • Aufsteckfräser • metrisch
M1200 Mini High Feed • Cylindrical Shank
M1200 Mini High Feed • Shell Mills

Ersatzteile for M1200 Mini • 15° • aufschraubbarer Schaftfräser • metrisch
