| Material Nummer | 3778942 |
| ISO Katalog Nummer | ONGX060512ANSNMM |
| ANSI Katalog Nummer | ONGX060512ANSNMM |
| Sorte | WU20PM |
| Schneidkanten pro Wendeschneidplatte | 16 |

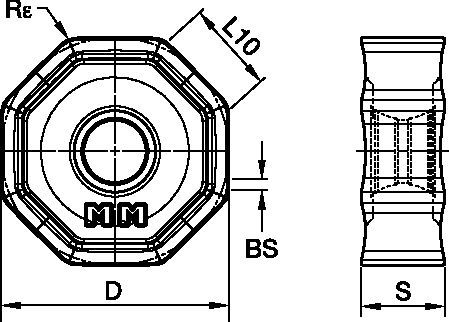

| [D] Wendeschneidplatten-Größe (Inkreis) | 16.875 mm |
| [D] Wendeschneidplatten-Größe (Inkreis) | 0.664 in |
| [L10] Schneidkantenlänge der Wendeschneidplatte | 6.874 mm |
| [L10] Schneidkantenlänge der Wendeschneidplatte | 0.2706 in |
| [S] Dicke der Wendeschneidplatte | 5.473 mm |
| [S] Dicke der Wendeschneidplatte | 0.2155 in |
| [BS] Eckflächenlänge | 0.765 mm |
| [BS] Eckflächenlänge | 0.0301 in |
| [Rε] Eckenradius | 1.2 mm |
| [Rε] Eckenradius | 0.047 in |
| Mittlere Spandicke [HM] | 0.055 mm |
| Mittlere Spandicke [HM] | 0.0022 in |
Lösung erstellen, um Vorschübe und Geschwindigkeiten zu berechnen
Nachdem Sie eine Lösung erstellt haben, wählen Sie einfach das Symbol für Vorschübe und Geschwindigkeiten und unser System gibt Ihnen Empfehlungen. Sie können die Informationen anpassen, indem Sie Ihre Maschine und Spezifikationen hinzufügen oder Anpassungen mithilfe der Schieberegler vornehmen.
| Schneidkörper- Geometrie | Programmierter Vorschub pro Zahn (fz) | Schneidkörper- Geometrie | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .S..MM | 0,26 | 0,85 | 1,42 | 0,19 | 0,62 | 1,01 | 0,14 | 0,46 | 0,75 | 0,12 | 0,40 | 0,66 | 0,11 | 0,37 | 0,60 | .S..MM |
| .S..MH | 0,28 | 0,93 | 1,56 | 0,2 | 0,68 | 1,1 | 0,15 | 0,5 | 0,82 | 0,13 | 0,44 | 0,72 | 0,12 | 0,4 | 0,66 | .S..MH |
| Leichte Bearbeitung | Allgemeine Anwendung | Schruppbearbeitung |
| Leichte Bearbeitung | Allgemeine Anwendung | Schruppbearbeitung |
| Schneidkörper- Geometrie | Programmierter Vorschub pro Zahn (fz) | Schneidkörper- Geometrie | ||||||||||||||
| 5% | 10% | 20% | 30% | 40-100% | ||||||||||||
| .S..MM | .010 | .034 | .056 | .007 | .024 | .040 | .005 | .018 | .030 | .005 | .016 | .026 | .004 | .014 | .024 | .S..MM |
| .S..MH | .011 | .037 | .061 | .008 | .027 | .043 | .006 | .020 | .032 | .005 | .017 | .028 | .005 | .016 | .026 | .S..MH |
| Werkstoffgruppe | WP35CM | WK15CM | WU20PM | |||||||
| P | 1 | 455 | 395 | 370 | — | — | — | 330 | 290 | 270 |
| 2 | 280 | 255 | 230 | — | — | — | 275 | 250 | 200 | |
| 3 | 255 | 230 | 205 | — | — | — | 255 | 220 | 175 | |
| 4 | 190 | 175 | 160 | — | — | — | 225 | 190 | 150 | |
| 5 | 260 | 230 | 210 | — | — | — | 185 | 175 | 150 | |
| 6 | 160 | 135 | 110 | — | — | — | 165 | 130 | 100 | |
| M | 1 | 205 | 185 | 155 | — | — | — | 205 | 180 | 165 |
| 2 | 185 | 160 | 140 | — | — | — | 185 | 160 | 130 | |
| 3 | 145 | 130 | 115 | — | — | — | 140 | 120 | 95 | |
| K | 1 | 295 | 265 | 240 | 420 | 385 | 340 | 250 | 220 | 185 |
| 2 | 235 | 210 | 190 | 335 | 295 | 275 | 200 | 180 | 150 | |
| 3 | 195 | 175 | 160 | 280 | 250 | 230 | 180 | 150 | 120 | |
| N | 1 | — | — | — | — | — | — | 550 | 470 | 400 |
| 2 | — | — | — | — | — | — | 550 | 470 | 400 | |
| 3 | — | — | — | — | — | — | 400 | 350 | 300 | |
| S | 1 | — | — | — | — | — | — | 40 | 35 | 25 |
| 2 | — | — | — | — | — | — | 40 | 35 | 25 | |
| 3 | — | — | — | — | — | — | 50 | 40 | 25 | |
| 4 | — | — | — | — | — | — | 70 | 50 | 35 | |
| H | 1 | — | — | — | — | — | — | 110 | 80 | 70 |
| Werkstoffgruppe | WP35CM | WK15CM | WU20PM | |||||||
| P | 1 | 1490 | 1300 | 1210 | — | — | — | 1080 | 950 | 890 |
| 2 | 920 | 840 | 750 | — | — | — | 900 | 820 | 660 | |
| 3 | 840 | 750 | 670 | — | — | — | 840 | 720 | 570 | |
| 4 | 620 | 570 | 520 | — | — | — | 740 | 620 | 490 | |
| 5 | 850 | 750 | 690 | — | — | — | 610 | 570 | 490 | |
| 6 | 520 | 440 | — | — | — | — | 540 | 430 | 330 | |
| M | 1 | 670 | 610 | 510 | — | — | — | 670 | 590 | 540 |
| 2 | 610 | 520 | 460 | — | — | — | 610 | 520 | 430 | |
| 3 | 480 | 430 | 380 | — | — | — | 460 | 390 | 310 | |
| K | 1 | 970 | 870 | 790 | 1380 | 1260 | 1120 | 820 | 720 | 610 |
| 2 | 770 | 690 | 620 | 1100 | 970 | 900 | 660 | 590 | 490 | |
| 3 | 640 | 570 | 520 | 920 | 820 | 750 | 590 | 490 | 390 | |
| N | 1 | — | — | — | — | — | — | 1800 | 1540 | 1310 |
| 2 | — | — | — | — | — | — | 1800 | 1540 | 1310 | |
| 3 | — | — | — | — | — | — | 1310 | 1150 | 980 | |
| S | 1 | — | — | — | — | — | — | 130 | 110 | 80 |
| 2 | — | — | — | — | — | — | 130 | 110 | 80 | |
| 3 | — | — | — | — | — | — | 160 | 130 | 80 | |
| 4 | — | — | — | — | — | — | 230 | 160 | 110 | |
| H | 1 | — | — | — | — | — | — | 360 | 260 | 230 |
| Leichte Bearbeitung | Allgemeine Anwendung | Schruppbearbeitung | ||||
| Werkstoffgruppe | Geometrie | Sorte | Geometrie | Sorte | Geometrie | Sorte |
| P1–P2 | .S..MM | WP35CM | .S..MM | WP35CM | .S..MM | WU20PM |
| P3–P4 | .S..MM | WP35CM | .S..MM | WP35CM | .S..MM | WU20PM |
| P5–P6 | .S..MM | WP35CM | .S..MM | WP35CM | .S..MM | WP35CM |
| M1–M2 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| M3 | .S..MM | WP35CM | .S..MM | WP35CM | .S..MM | WP35CM |
| K1–K2 | .S..MM | WK15CM | .S..MM | WK15CM | .S..MM | WU20PM |
| K3 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WK15CM |
| N1–N2 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| N3 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| S1–S2 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| S3 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| S4 | .S..MM | WP35CM | .S..MM | WU20PM | .S..MM | WU20PM |
| H1 | .S..MM | WU20PM | – | – | – | – |
