| Product # | 3738881 |
| ISO Catalog Number | 5A0216006B |
| ANSI Catalog Number | 5A0216006B |
| Grade | UNCOATED |
| Adapter Style Machine Side | Straight-Cylindrical |

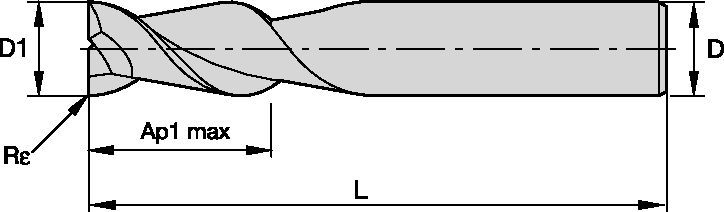

| [D1]Effective Cutting Dia Frac | 5/8 |
| [D]Adapter/Shank/Bore Dia Frac | 5/8 |
| [AP1MAX]1st Max Cut Depth Frac | 1 1/4 |
| [L] Overall Length Fraction | 3 1/2 |
| [REPSILON]Corner Radius Inch | .0300 |
| Product # | ISO Catalog Number | ANSI Catalog Number | Grade | Adapter Style Machine Side | [D1]Effective Cutting Dia Frac | [D]Adapter/Shank/Bore Dia Frac | [AP1MAX]1st Max Cut Depth Frac | [L] Overall Length Fraction | [REPSILON]Corner Radius Inch |
|---|---|---|---|---|---|---|---|---|---|
| 3336098 | 5A0207002 | 5A0207002 | UNCOATED | Straight-Cylindrical | 1/4 | 1/4 | 1/2 | 2 1/2 | |
| 3336099 | 5A0207002A | 5A0207002A | UNCOATED | Straight-Cylindrical | 1/4 | 1/4 | 1/2 | 2 1/2 | .0150 |
| 3336100 | 5A0208003 | 5A0208003 | UNCOATED | Straight-Cylindrical | 5/16 | 5/16 | 5/8 | 2 1/2 | |
| 3336101 | 5A0208003B | 5A0208003B | UNCOATED | Straight-Cylindrical | 5/16 | 5/16 | 5/8 | 2 1/2 | .0300 |
| 3336102 | 5A0210004 | 5A0210004 | UNCOATED | Straight-Cylindrical | 3/8 | 3/8 | 3/4 | 2 1/2 | |
| 3336103 | 5A0210004B | 5A0210004B | UNCOATED | Straight-Cylindrical | 3/8 | 3/8 | 3/4 | 2 1/2 | .0300 |
| 3336104 | 5A0213015 | 5A0213015 | UNCOATED | Straight-Cylindrical | 1/2 | 1/2 | 1 1/4 | 3 | |
| 3336105 | 5A0213015B | 5A0213015B | UNCOATED | Straight-Cylindrical | 1/2 | 1/2 | 1 1/4 | 3 | .0300 |
| 3336106 | 5A0216006 | 5A0216006 | UNCOATED | Straight-Cylindrical | 5/8 | 5/8 | 1 1/4 | 3 1/2 | |
| 3336107 | 5A0216006C | 5A0216006C | UNCOATED | Straight-Cylindrical | 5/8 | 5/8 | 1 1/4 | 3 1/2 | .0600 |
| 3336108 | 5A0219007 | 5A0219007 | UNCOATED | Straight-Cylindrical | 3/4 | 3/4 | 1 1/2 | 4 | |
| 3336109 | 5A0219007C | 5A0219007C | UNCOATED | Straight-Cylindrical | 3/4 | 3/4 | 1 1/2 | 4 | .0600 |
| 3649650 | 5A0207002B | 5A0207002B | UNCOATED | Straight-Cylindrical | 1/4 | 1/4 | 1/2 | 2 1/2 | .0300 |
| 3649651 | 5A0210004C | 5A0210004C | UNCOATED | Straight-Cylindrical | 3/8 | 3/8 | 3/4 | 2 1/2 | .0600 |
| 3649652 | 5A0213015C | 5A0213015C | UNCOATED | Straight-Cylindrical | 1/2 | 1/2 | 1 1/4 | 3 | .0600 |
| 3649753 | 5A0213015E | 5A0213015E | UNCOATED | Straight-Cylindrical | 1/2 | 1/2 | 1 1/4 | 3 | .1200 |
| 3649754 | 5A0219007B | 5A0219007B | UNCOATED | Straight-Cylindrical | 3/4 | 3/4 | 1 1/2 | 4 | .0300 |
| 3649755 | 5A0219007E | 5A0219007E | UNCOATED | Straight-Cylindrical | 3/4 | 3/4 | 1 1/2 | 4 | .1200 |
| 3738203 | 5A0207002C | 5A0207002C | UNCOATED | Straight-Cylindrical | 1/4 | 1/4 | 1/2 | 2 1/2 | .0600 |
| 3738879 | 5A0213015D | 5A0213015D | UNCOATED | Straight-Cylindrical | 1/2 | 1/2 | 1 1/4 | 3 | .0900 |
| 3738881 | 5A0216006B | 5A0216006B | UNCOATED | Straight-Cylindrical | 5/8 | 5/8 | 1 1/4 | 3 1/2 | .0300 |
| 3738882 | 5A0216006D | 5A0216006D | UNCOATED | Straight-Cylindrical | 5/8 | 5/8 | 1 1/4 | 3 1/2 | .0900 |
| P | |
| M | |
| K | |
| N | ● |
| H | |
| S | |
| C | |
| UNCOATED |
38570
Spiralwinkel: 45°
Schneideckenausführung: Ebene Stirnfläche
Schneideckenausführung: Eckenradius
Nutenfräsen: Ebene Stirnfläche
Schräg-Eintauchfräsen Ins Volle
Side Milling/Shoulder Milling: Square End
Zylinderschaft – ohne Spannfläche |  |  | |||||||||||||
| Side Milling (A) and Slotting (B) | uncoated | Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%. | |||||||||||||
| A | B | Cutting Speed vc SFM | D1 Diameter | ||||||||||||
| frac. | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||||||
| Material Group | ap | ae | ap | min | max | dec. | .2500 | .3130 | .3750 | .5000 | .6250 | .7500 | 1.000 | ||
| N | 1 | 1.5 x D | 0.5 x D | 1 x D | 1640 | – | 6560 | IPT | .0023 | .0028 | .0034 | .0045 | .0056 | .0068 | .0090 |
| 2 | 1.5 x D | 0.5 x D | 1 x D | 1640 | – | 4920 | IPT | .0018 | .0023 | .0027 | .0036 | .0045 | .0054 | .0072 | |
| 3 | 1.5 x D | 0.5 x D | 1 x D | 1640 | – | 4920 | IPT | .0016 | .0020 | .0024 | .0032 | .0039 | .0047 | .0063 | |
| 4 | 1.5 x D | 0.5 x D | 1 x D | 1310 | – | 2460 | IPT | .0016 | .0020 | .0024 | .0032 | .0039 | .0047 | .0063 | |
| 5 | 1.5 x D | 0.5 x D | 1 x D | 820 | – | 3280 | IPT | .0020 | .0025 | .0030 | .0041 | .0051 | .0061 | .0081 | |
