| Product # | 5599975 |
| ISO Catalog Number | 625E51062EW |
| ANSI Catalog Number | 625E51062EW |
| Grade | M42 |
| Adapter Style Machine Side | Whistle-Weldon 5 NAS 986 5.4 D |

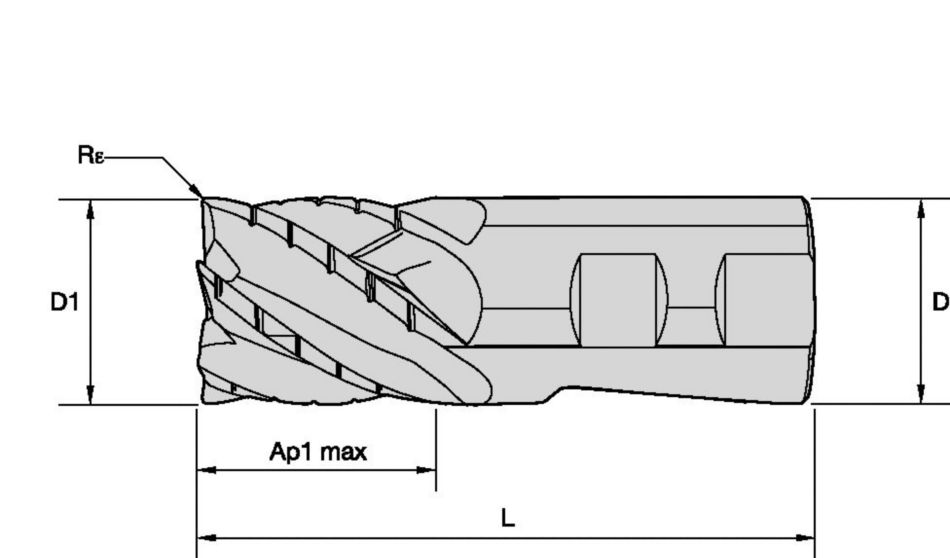

| [D1]Effective Cutting Dia Frac | 2 |
| [D]Adapter/Shank/Bore Dia Frac | 2 |
| [AP1MAX]1st Max Cut Depth Frac | 6 |
| [L] Overall Length Fraction | 9 3/4 |
| [REPSILON]Corner Radius Inch | .1200 |
| Product # | ISO Catalog Number | ANSI Catalog Number | Grade | Adapter Style Machine Side | [D1]Effective Cutting Dia Frac | [D]Adapter/Shank/Bore Dia Frac | [AP1MAX]1st Max Cut Depth Frac | [L] Overall Length Fraction | [REPSILON]Corner Radius Inch |
|---|---|---|---|---|---|---|---|---|---|
| 5329387 | 620E32009CW | 620E32009CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/4 | 1 1/4 | 2 | 4 1/2 | .0600 |
| 5329388 | 623E32009CW | 623E32009CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/4 | 1 1/4 | 3 | 5 1/2 | .0600 |
| 5329389 | 621E32009CW | 621E32009CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/4 | 1 1/4 | 4 | 6 1/2 | .0600 |
| 5329552 | 621E38009CW | 621E38009CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/2 | 1 1/4 | 4 | 6 1/2 | .0600 |
| 5329554 | 623E3800ACW | 623E3800ACW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/2 | 1 1/2 | 3 | 6 1/4 | .0600 |
| 5329555 | 621E3800ACW | 621E3800ACW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/2 | 1 1/2 | 4 | 7 1/4 | .0600 |
| 5329556 | 625E51022CW | 625E51022CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 2 | 5 3/4 | .0600 |
| 5329557 | 625E51032CW | 625E51032CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 3 | 6 3/4 | .0600 |
| 5329558 | 625E51042CW | 625E51042CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 4 | 7 3/4 | .0600 |
| 5329559 | 625E51062CW | 625E51062CW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 6 | 9 3/4 | .0600 |
| 5599913 | 620E32009EW | 620E32009EW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/4 | 1 1/4 | 2 | 4 1/2 | .1200 |
| 5599914 | 623E32009EW | 623E32009EW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/4 | 1 1/4 | 3 | 5 1/2 | .1200 |
| 5599915 | 621E32009EW | 621E32009EW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 1 1/4 | 1 1/4 | 4 | 6 1/2 | .1200 |
| 5599972 | 625E51022EW | 625E51022EW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 2 | 5 3/4 | .1200 |
| 5599973 | 625E51032EW | 625E51032EW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 3 | 6 3/4 | .1200 |
| 5599974 | 625E51042EW | 625E51042EW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 4 | 7 3/4 | .1200 |
| 5599975 | 625E51062EW | 625E51062EW | M42 | Whistle-Weldon 5 NAS 986 5.4 D | 2 | 2 | 6 | 9 3/4 | .1200 |
Side Milling/Shoulder Milling: Square End
Spiralwinkel: 38°
NAS986 5.4D
Nutenfräsen: Ebene Stirnfläche
Schräg-Eintauchfräsen Ins Volle
HSS-M42
Werkzeugabmessungen: Schneidreihen: 6  |  |  | |||||||||
| Side Milling (A) and Slotting (B) | uncoated | Recommended feed per tooth (IPT=inch/th) for side milling (A). For slotting (B), reduce IPT by 20%. | |||||||||
| A | B | Cutting Speed vc SFM | D1 Diameter | ||||||||
| frac. | 1 1/4 | 1 1/2 | 2 | ||||||||
| Material Group | ap | ae | ap | min | max | dec. | 1.2500 | 1.5000 | 2.0000 | ||
| M | 1 | 1.5 x D | 0.5 x D | 1 x D | 40 | – | 60 | IPT | .0052 | .0053 | .0053 |
| 2 | 1.5 x D | 0.5 x D | 1 x D | 40 | – | 60 | IPT | .0042 | .0042 | .0043 | |
| S | 4 | 1.5 x D | 0.5 x D | 1 x D | 16 | – | 50 | IPT | .0038 | .0039 | .0039 |
