ORIGINAL PRODUCT

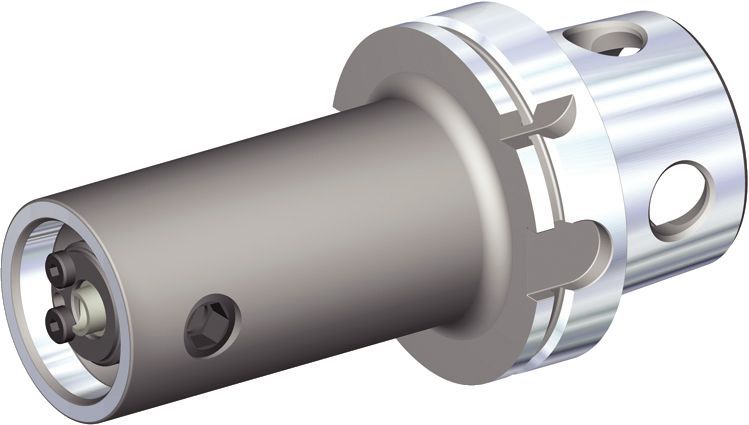

KM-KM4X KM-KM4X

Modulare KM™-Werkzeugaufnahmen
(13 Products)
  • Schaft – KM-TS ISO 26622Schaft – KM-TS ISO 26622
  • Shank: KM4X™Shank: KM4X™
  • Kühlmittel – Innere KühlmittelzuführungKühlmittel – Innere Kühlmittelzuführung
View Products
SAP-Materialnummer ISO Katalognummer ANSI Katalognummer [CSWS] Systemgröße Werkstückseite [D2] Körperdurchmesser 1 Werkstückseite [D2] Körperdurchmesser 1 Werkstückseite [L1] Messlänge [L1] Messlänge Betätigungsschraube Größe Anzugsmoment Katalog Newton-Meter
4161856 KM4X100KM32075M KM4X100KM32075M KM32 32.0000 1.260 75.0000 2.953 5 mm 8-11
    List price:
    $1,103.85 /each
    Your price::
    4161858 KM4X100KM40080M KM4X100KM40080M KM40 40.0000 1.575 80.0000 3.150 6 mm 12-16
      List price:
      $1,126.65 /each
      Your price::
      4161859 KM4X100KM40100M KM4X100KM40100M KM40 40.0000 1.575 100.0000 3.937 6 mm 12-16
        List price:
        $1,126.65 /each
        Your price::
        4161860 KM4X100KM40150M KM4X100KM40150M KM40 40.0000 1.575 150.0000 5.905 6 mm 12-16
          List price:
          $1,126.65 /each
          Your price::
          4161861 KM4X100KM50100M KM4X100KM50100M KM50 50.0000 1.969 100.0000 3.937 10 mm 27-34
            List price:
            $1,126.65 /each
            Your price::
            4161862 KM4X100KM50150M KM4X100KM50150M KM50 50.0000 1.969 150.0000 5.905 10 mm 27-34
              List price:
              $1,126.65 /each
              Your price::
              4161863 KM4X100KM50200M KM4X100KM50200M KM50 50.0000 1.969 200.0000 7.874 10 mm 27-34
                List price:
                $1,126.65 /each
                Your price::
                4161864 KM4X100KM63100M KM4X100KM63100M KM63 63.0000 2.480 100.0000 3.937 12 mm 47-54
                  List price:
                  $1,169.23 /each
                  Your price::
                  4161865 KM4X100KM63150M KM4X100KM63150M KM63 63.0000 2.480 150.0000 5.905 12 mm 47-54
                    List price:
                    $1,169.23 /each
                    Your price::
                    4161866 KM4X100KM63200M KM4X100KM63200M KM63 63.0000 2.480 200.0000 7.874 12 mm 47-54
                      List price:
                      $1,169.23 /each
                      Your price::
                      4161867 KM4X100KM80100M KM4X100KM80100M KM80 80.0000 3.150 100.0000 3.937 8 mm 78-84
                        List price:
                        $1,375.99 /each
                        Your price::
                        4161868 KM4X100KM80150M KM4X100KM80150M KM80 80.0000 3.150 150.0000 5.905 14 mm 78-84
                          List price:
                          $1,375.99 /each
                          Your price::
                          4161869 KM4X100KM80200M KM4X100KM80200M KM80 80.0000 3.150 200.0000 7.874 14 mm 78-84
                            List price:
                            $1,375.99 /each
                            Your price::
