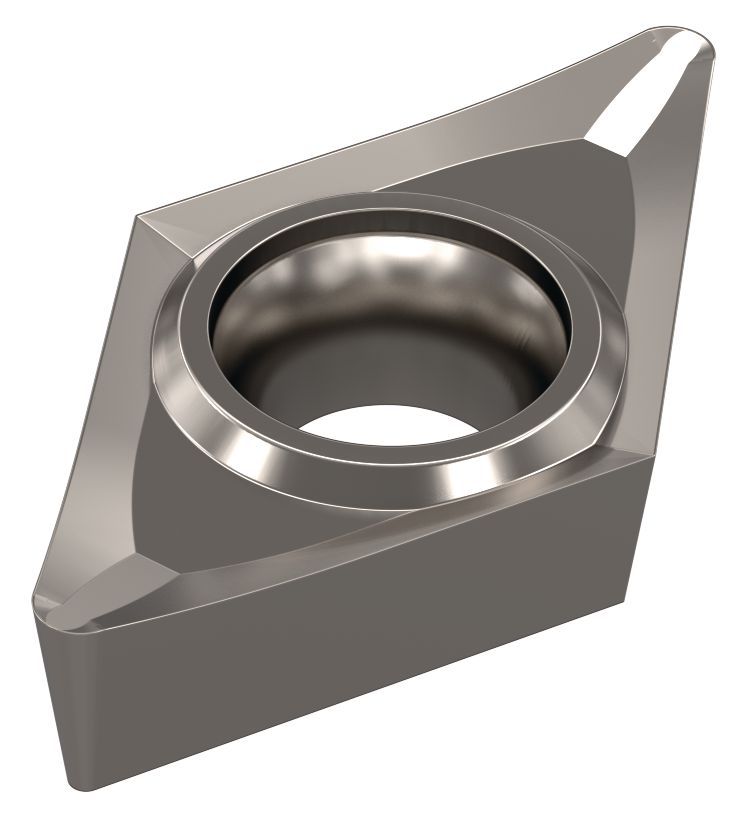

      WIDIA™ Inserts • DCGT-AL • Machining Aluminum
      WIDIA™ Inserts • DCGT-AL • Machining Aluminum
      WIDIA™ Inserts • DCGT-AL • Machining Aluminum
      WIDIA™ Inserts • DCGT-AL • Machining Aluminum
      Download CAD Drawings
      SDS

      DCGT-AL • Inserts for Aluminum

      WIDIA™ Inserts • DCGT-AL • Machining Aluminum

      Metric
      Inch
      SAP Material Number 6846591
      ISO Catalog Number DCGT11T308AL
      ANSI Catalog Number DCGT3252AL
      Grade WU10HT
      [D] Insert IC Size 9.5250 mm
      [D] Insert IC Size .3750 in
      [L10] Insert Cutting Edge Length 11.6280 mm
      [L10] Insert Cutting Edge Length .4578 in
      [S] Insert Thickness 3.9700 mm
      [S] Insert Thickness .1563 in
      [Rε] Corner Radius 0.8000 mm
      [Rε] Corner Radius .0312 in
      [D1] Insert Hole Size 4.4000 mm
      [D1] Insert Hole Size .1732 in
      See all Product Variants

      Uses and application

      • TurningTurning
      • FacingFacing
      • ChamferingChamfering
      • ProfilingProfiling
      • BoringBoring
      • 100788769100788769

      Workpiece Materials

      N Non-Ferrous

      Features and benefits

      • Universal geometry for aluminum and non-ferrous materials.

      Grades

      • WU10HT
        WU10HT

        A hard, low binder content, unalloyed WC/Co fine-grained uncoated grade. Exceptional edge wear resistance combined with very high strength for machining titanium, cast irons, austenitic stainless steels, non-ferrous metals, non-metals, and most high-temperature alloys. Superior thermal deformation and depth-of-cut notch resistance. The grain structure is well controlled for minimal pits and flaws, which contributes to long, reliable service.

        N Non-Ferrous
