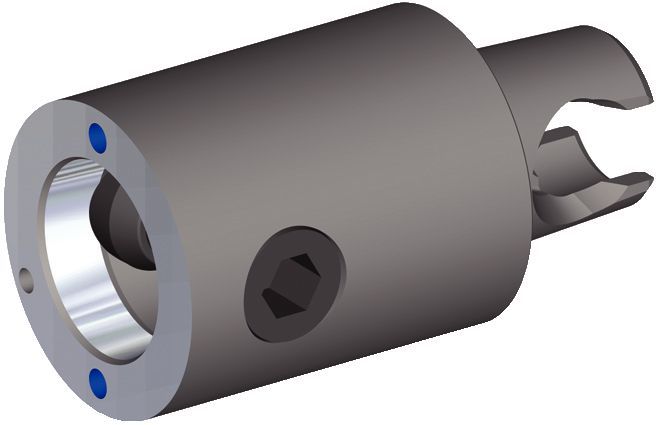

S - Extensions • KM2520/KM3225 Mini Shank Tools

KM™ Extensions

Metric
Inch
SAP Material Number 3483043
ISO Catalog Number KM2520S2550
ANSI Catalog Number KM2520S2550
[CSMS] System Size Machine Side KM2520
[CSWS] System Size Workpiece Side KM2520
[D2] Body Diameter 1 Workpiece Side 25 mm
[D2] Body Diameter 1 Workpiece Side .9843 in
[L1] Gage Length 50 mm
[L1] Gage Length 1.969 in
Actuation Screw ID Drive Size 5 mm
Torque Catalog Newton Meters 19-22
Torque Catalog Foot Pounds 14-16
See all Product Variants

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for S - Extensions • KM2520/KM3225 Mini Shank Tools

Spare Part
    KM20 TORQUE WRENCH KM20 TORQUE WRENCH
    KM20 TORQUE WRENCH
    Spare Part
      KM20 THUMBWHEEL KM20 THUMBWHEEL
      KM20 THUMBWHEEL
