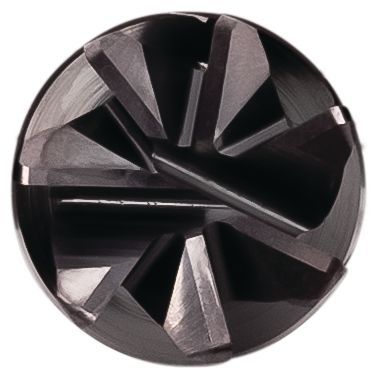

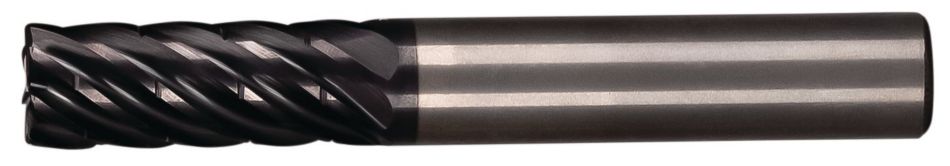

VariMill™ Chip Splitters • Series 770T • Radiused • 7 Flute • Cylindrical Shank • Inch

VariMill™ Chip Splitters • Radiused • 7 Flute • 2 x D • Cylindrical Shank • Inch

Metrik
İnç
SAP Material Number 6853797
ISO Catalog Number 770TE2500ARKT
ANSI Catalog Number 770TE2500ARKT
Grade WS15PE
Adapter Style Machine Side Straight-Cylindrical

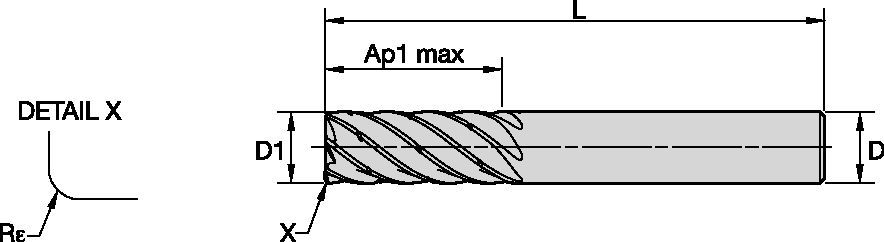

[Re] Corner Radius 3.048 mm
[Re] Corner Radius .12 in
[Z] Number of Flutes 7
[D1] Effective Cutting Diameter 25.4 mm
[D1] Effective Cutting Diameter 1 in
[D] Adapter / Shank / Bore Diameter 25.4 mm
[D] Adapter / Shank / Bore Diameter 1 in
[AP1MAX] 1st Maximum Cutting Depth 44.45 mm
[AP1MAX] 1st Maximum Cutting Depth 1.75 in
[L] Overall Length 114.3 mm
[L] Overall Length 4.5 in
Tüm Ürün Değişkenlerini görün

Kullanım ve uygulama alanları

  • Trochoidal MillingTrochoidal Milling
  • Helical MillingHelical Milling
  • Ramping: BlankRamping: Blank
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End

İş Parçası Malzemeleri

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys
H Hardened Materials
