Internal Coolant Capability
frontEnd
Adapter Front-End
  • BORING BAR ADAPTER (5)
  • ER COLLET CHUCK (3)
  • EXTENSION (1)
Front End Type
  • KMS - KM TBD System (1)
  • SZK - Collet Taper (3)
  • ZYL - Cylindrical Adapter (5)
Front End Style
  • KMS-02 Englarged Flange OnCntr (1)
  • SZK02 Collets 8 Degree Taper (3)
  • ZYL22 Boring Bar Shank (5)
Gage Length
  • 35.0000 (1)
  • 40.0000 (1)
  • 45.0000 (2)
  • 55.0000 (1)
  • 60.0000 (2)
  • 65.0000 (1)
  • 70.0000 (1)
Gage Length
  • 1.3780 (1)
  • 1.5748 (1)
  • 1.7717 (2)
  • 2.1654 (1)
  • 2.3622 (2)
  • 2.5591 (1)
  • 2.7559 (1)
Front End Size
  • 6.0 (1)
  • 10.0 (1)
  • 12.0 (1)
  • 16.0 (1)
  • 20.0 (1)
to
Front End Size
  • 0.2362 (1)
  • 0.3937 (1)
  • 0.4724 (1)
  • 0.6299 (1)
  • 0.7874 (1)
to
backEnd
System Size
  • KM3225 (9)
other
Platform
  • KM20 (2)
  • KM25 (3)
  • KM3225 (10)
Tool Unit
  • I (3)
  • M (15)
No filters matching ""
View Products in
Metric
Inch

ORIGINAL PRODUCT

View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [CSMS] System Size Machine Side [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Hardness Range Weight Kilograms Weight Pounds
2427296 KM25BN5050 KM25BN5050 KM25 50.0000 1.969 50.0000 1.968 38 - 42 RW C 0.78 1.72
    List price:
    $135.15 /each.
    Your price::
    Qty
    2656551 KM3225BN5050 KM3225BN5050 KM3225 50.0000 1.968 50.0000 1.968 38 - 42 RW C 0.78 1.71
      List price:
      $222.58 /each.
      Your price::
      Qty
      3518531 KM20BN4040 KM20BN4040 KM20 40.0000 1.574 40.0000 1.574 38 - 42 RW C 0.40 0.88
        List price:
        $141.64 /each.
        Your price::
        Qty
        List price:
        Discount: %
        Your price::
        Replacement This item is not available
        Replacement Product This item may be available through a distributor
        Qty

        Sold in pkg. of

        ORIGINAL PRODUCT

        KM™ Mini Werkzeugaufnahmen

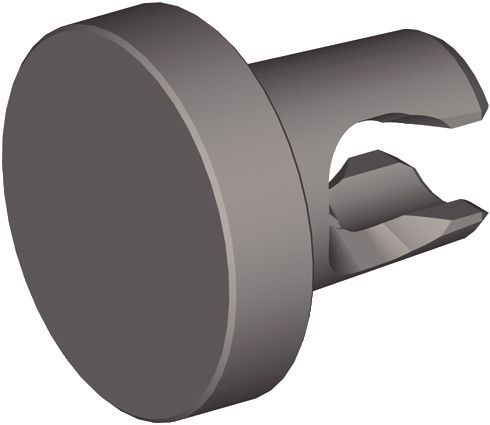

        Verschlussköpfe
        (2 Products)
        View Products
        SAP Material Number ISO Catalog Number ANSI Catalog Number [CSMS] System Size Machine Side [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Weight Kilograms Weight Pounds
        2427295 KM25P KM25P KM25 25.0000 .9843 5.0000 .1969 0.04 0.09
          List price:
          $68.07 /each.
          Your price::
          Qty
          3662590 KM20P KM20P KM20 20.0000 .7870 5.0000 .1970 0.03 0.06
            List price:
            $73.31 /each.
            Your price::
            Qty
            List price:
            Discount: %
            Your price::
            Replacement This item is not available
            Replacement Product This item may be available through a distributor
            Qty

            Sold in pkg. of

            ORIGINAL PRODUCT

            View Products
            SAP Material Number ISO Catalog Number ANSI Catalog Number [CSMS] System Size Machine Side [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side Gage Test Length [L13] Gage Test Length [L13] Weight Kilograms Weight Pounds
            2427297 KM25GB3230 KM25GB3230 KM25 32.0000 1.259 29.0000 1.141 0.21 0.46
              List price:
              $388.52 /each.
              Your price::
              Qty
              List price:
              Discount: %
              Your price::
              Replacement This item is not available
              Replacement Product This item may be available through a distributor
              Qty

              Sold in pkg. of

              ORIGINAL PRODUCT

              View Products
              SAP Material Number ISO Catalog Number ANSI Catalog Number [CSMS] System Size Machine Side [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Clamp Screw ID Drive Size Torque Catalog Newton Meters
              2527505 KM3225BA0645M KM3225BA0645M KM3225 6.0000 .2362 32.0000 1.259 45.0000 1.771 36.0000 1.410 2.5 mm 4
                List price:
                $232.14 /each.
                Your price::
                Qty
                2527507 KM3225BA1055M KM3225BA1055M KM3225 10.0000 .3937 32.0000 1.259 55.0000 2.165 48.0000 1.890 4 mm 15
                  List price:
                  $232.14 /each.
                  Your price::
                  Qty
                  2527508 KM3225BA1260M KM3225BA1260M KM3225 12.0000 .4724 32.0000 1.259 60.0000 2.362 52.0000 2.050 4 mm 15
                    List price:
                    $232.14 /each.
                    Your price::
                    Qty
                    2527509 KM3225BA1665M KM3225BA1665M KM3225 16.0000 .6299 34.0000 1.338 65.0000 2.559 55.0000 2.170 5 mm 25
                      List price:
                      $232.14 /each.
                      Your price::
                      Qty
                      2527510 KM3225BA2070M KM3225BA2070M KM3225 20.0000 .7874 37.0000 1.456 70.0000 2.755 58.0000 2.280 5 mm 25
                        List price:
                        $232.14 /each.
                        Your price::
                        Qty
                        List price:
                        Discount: %
                        Your price::
                        Replacement This item is not available
                        Replacement Product This item may be available through a distributor
                        Qty

                        Sold in pkg. of

                        ORIGINAL PRODUCT

                        View Products
                        SAP Material Number ISO Catalog Number ANSI Catalog Number [CSMS] System Size Machine Side [CSWS] System Size Workpiece Side [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Actuation Screw ID Drive Size Torque Catalog Newton Meters Torque Catalog Foot Pounds
                        2541965 KM3225S3260 KM3225S3260 KM3225 KM3225 32.0000 1.259 60.0000 2.362 6 mm 34-40 25-30
                          List price:
                          $440.25 /each.
                          Your price::
                          Qty
                          List price:
                          Discount: %
                          Your price::
                          Replacement This item is not available
                          Replacement Product This item may be available through a distributor
                          Qty

                          Sold in pkg. of

                          ORIGINAL PRODUCT

                          View Products
                          SAP Material Number ISO Catalog Number ANSI Catalog Number [CST] Catalog Collet Series [CSMS] System Size Machine Side [D11] Lock Nut Diameter [D11] Lock Nut Diameter [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Counter Bore Collet Torque Nm Straight Collet Torque Nm Weight Kilograms Weight Pounds
                          2527514 KM3225ER1635 KM3225ER1635 ER16 KM3225 22.0000 .8661 35.0000 1.378 33.2000 1.307 24.000 56 0.10 0.23
                            List price:
                            $272.17 /each.
                            Your price::
                            Qty
                            2527515 KM3225ER2545 KM3225ER2545 ER25 KM3225 42.0000 1.653 45.0000 1.771 38.8000 1.528 104.000 104 0.25 0.55
                              List price:
                              $272.17 /each.
                              Your price::
                              Qty
                              2527516 KM3225ER2040 KM3225ER2040 ER20 KM3225 28.0000 1.102 40.0000 1.574 36.3000 1.429 28.000 80 0.14 0.31
                                List price:
                                $272.17 /each.
                                Your price::
                                Qty
                                List price:
                                Discount: %
                                Your price::
                                Replacement This item is not available
                                Replacement Product This item may be available through a distributor
                                Qty

                                Sold in pkg. of
