Heat Exchangers Machining Solutions

The tube sheet is one of the main components in a shell & tube heat exchanger.

Depending on the tube bundle configuration, a heat exchanger can be equipped with one or two tube sheets.

These are usually made of low carbon steel material, with a varying thickness based on the fluid pressure.

Depending on the final application (petrochemical, nuclear, oil&gas, etc.) the tube sheet can be cladded with Stainless Steel or other Super Alloys or even be entirely made out Stainless Steel or Superalloys.

Heat Exchange Diagram
Tube sheet

Tube Sheets

The tube sheet is one of the main components in a shell & tube heat exchanger.

Depending on the tube bundle configuration, a heat exchanger can be equipped with one or two tube sheets.

These are usually made of low carbon steel material, with a varying thickness based on the fluid pressure.

Depending on the final application (petrochemical, nuclear, oil&gas, etc.) the tube sheet can be cladded with Stainless Steel or other Super Alloys or even be entirely made out Stainless Steel or Superalloys.

TOOLING SOLUTIONS

Typical Hole Patterns

The most common types of holes experienced in tube sheet drilling are triangular, rotated triangular, square and rotated square. Each hole pattern presents its own drilling challenges. See typical pattern types below.

Tube Sheets Triangular Pattern Type

Triangular Pattern

Tube Sheets Triangular Pattern

Triangular Tube Sheet Pattern Example

Tube Sheets Rotated Triangular Pattern Type

Rotated Triangular Pattern

Tube Sheets Rotated Triangular Pattern

Rotated Triangular Tube Sheet Pattern Example

Tube Sheets Square Pattern Type

Square Pattern

Tube Sheets Square Pattern

Square Tube Sheet Pattern Example

Tube Sheets Rotated Square Pattern Type

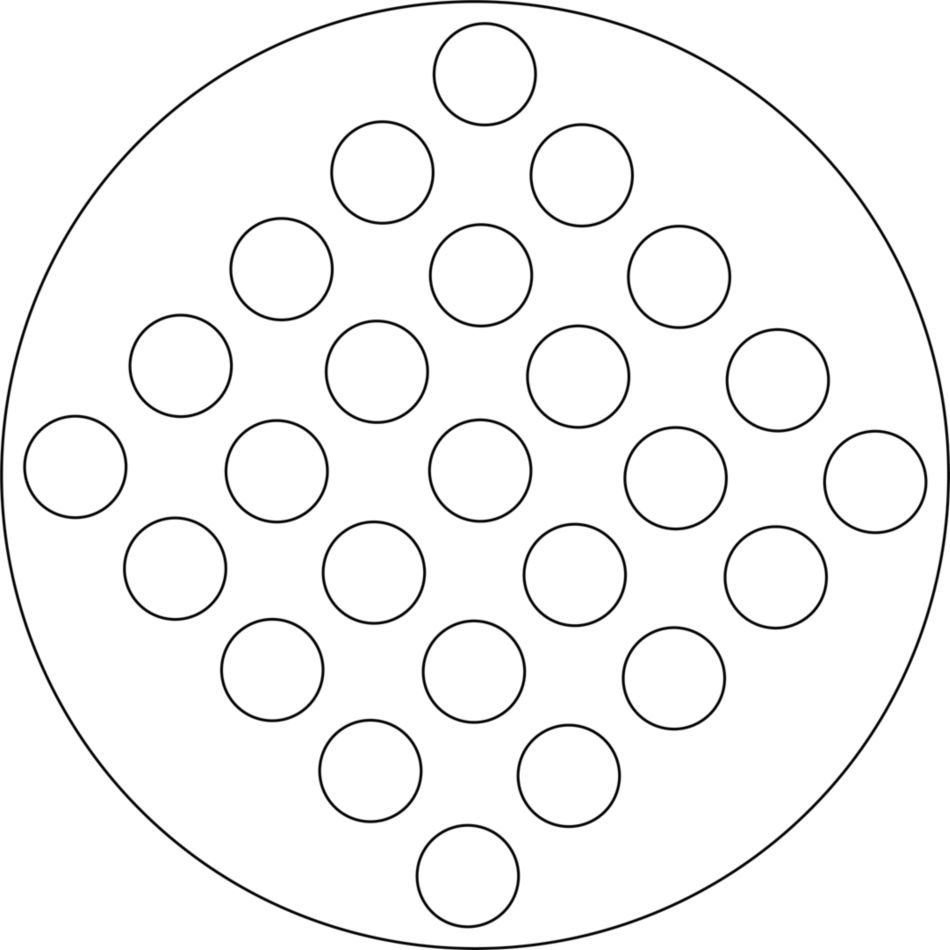

Rotated Square Pattern

Tube Sheets Rotated Square Pattern

Rotated Square Tube Sheet Pattern Example



Material Configuration

Possible Material Configuration
Possible Material Configuration


Tooling Solutions

VariDrill

Universal Solid Carbide Drilling portfolio, suitable for Steel, Stainless Steel and Super Alloys

View More

Interested in learning more about Energy Component Solutions?

Talk to the WIDIA Energy experts to discuss our tooling solutions.
