Shrink Fit Toolholders General Purpose (GP)
Shrink Fit Toolholders General Purpose (GP)
Shrink Fit Toolholders General Purpose (GP)
Shrink Fit Toolholders General Purpose (GP)

HPV Shrink Fit Adapter

Shrink Fit Toolholders General Purpose (GP)

Features and benefits

  • Balanceable — fine tune with optional M6 set screws.

  • Suitable for carbide and HSS cutting tools (requirements below).
Shrink Fit Toolholders General Purpose (GP)
Filters and Columns
Select Filters
Filters
Filters
View filters in
Metric
Inch
Front-End
Gage Length
Gage Length
  • 3.15 in (3)
  • 3.346 in (1)
  • 3.543 in (3)
  • 3.938 in (5)
  • 4.529 in (1)
  • 4.724 in (2)
Gage Length
Gage Length
  • 100 mm (5)
  • 80 mm (3)
  • 90 mm (3)
  • 120 mm (2)
  • 115 mm (1)
  • 85 mm (1)
Front End Size
Front End Size
  • 0.01 in (2)
  • 0.014 in (1)
  • 0.015 in (1)
  • 0.016 in (1)
  • 0.019 in (1)
  • 0.02 in (1)
  • 0.022 in (1)
  • 0.025 in (1)
  • 0.028 in (1)
  • 0.03 in (1)
  • 0.031 in (1)
  • 0.038 in (1)
  • 0.039 in (1)
  • 0.049 in (1)
Front End Size Min to Front End Size Max
Front End Size
Front End Size
  • 6.0 mm (1)
  • 6.351 mm (1)
  • 8.0 mm (1)
  • 9.525 mm (1)
  • 10.0 mm (1)
  • 12.0 mm (1)
  • 12.701 mm (1)
  • 14.0 mm (1)
  • 16.0 mm (1)
  • 18.0 mm (1)
  • 19.05 mm (1)
  • 20.0 mm (1)
  • 25.0 mm (1)
  • 25.401 mm (1)
  • 32.0 mm (1)
Front End Size Min to Front End Size Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 10 of 15 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

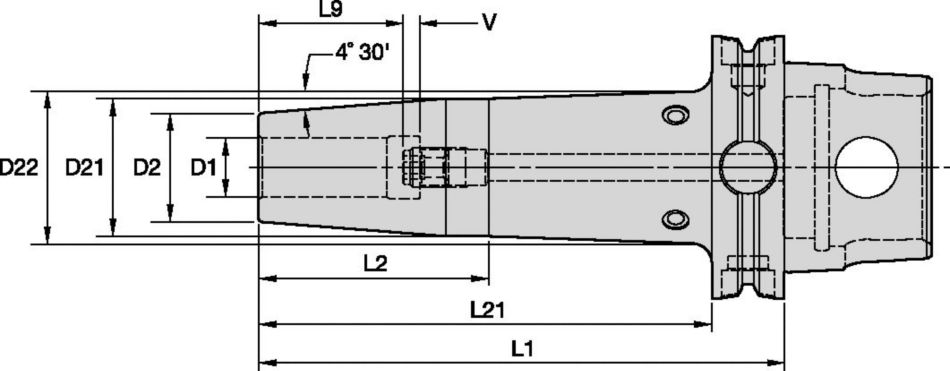

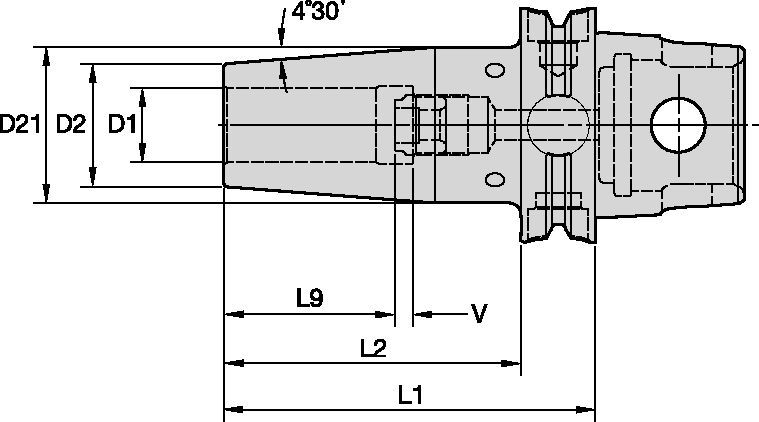

SAP Material Number ISO Catalog Number ANSI Catalog Number [L1] Gage Length [L1] Gage Length [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L9] Clamping Length [L9] Clamping Hole Length [V] Adjustment Range [V] Adjustment Range [D21] Body Diameter 2 Workpiece Side [D21] Body Diameter 2 Workpiece Side [L2] Usable Length [L2] Usable Length [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter Stop Screw ID Drive Size Weight Kilograms
3869253 KM63TSHPVTT025315 KM63TSHPVTT025315 80 3.149 21 .8268 26 1.023 10 .3937 26.9 1.059 60 2.362 6.35 .25 2.5 mm 0.83
    List price:
    ₹76,739.00 /each
    Your price:
    3869255 KM63TSHPVTT038335 KM63TSHPVTT038335 85 3.346 24 .9449 31 1.22 10 .3937 31.9 1.255 65 2.559 9.525 .375 4 mm 0.92
      List price:
      ₹67,115.00 /each
      Your price:
      3869257 KM63TSHPVTT050354 KM63TSHPVTT050354 90 3.543 24 .9449 36 1.417 10 .3937 31.9 1.255 70 2.755 12.7 .5 5 mm 0.92
        List price:
        ₹83,474.00 /each
        Your price:
        3869194 KM63TSHPVTT06080M KM63TSHPVTT06080M 80 3.149 21 .8268 26 1.023 10 .3937 26.9 1.059 60 2.362 6 .2362 2.5 mm 0.83
          List price:
          ₹77,804.00 /each
          Your price:
          3869261 KM63TSHPVTT075394 KM63TSHPVTT075394 100 3.937 33 1.299 41 1.614 10 .3937 41.9 1.649 80 3.149 19.05 .75 8 mm 1.22
            List price:
            ₹48,963.00 /each
            Your price:
            3869195 KM63TSHPVTT08080M KM63TSHPVTT08080M 80 3.149 21 .8268 26 1.023 10 .3937 26.9 1.059 60 2.362 8 .315 3 mm 0.83
              List price:
              ₹89,081.00 /each
              Your price:
              3869263 KM63TSHPVTT100453 KM63TSHPVTT100453 115 4.527 44 1.732 47 1.85 10 .3937 52.9 2.082 95 3.74 25.4 1 8 mm 1.83
                List price:
                ₹81,770.00 /each
                Your price:
                3869196 KM63TSHPVTT10090M KM63TSHPVTT10090M 90 3.543 24 .9449 31 1.22 10 .3937 31.9 1.255 70 2.755 10 .3937 4 mm 0.95
                  List price:
                  ₹71,626.00 /each
                  Your price:
                  3869197 KM63TSHPVTT12090M KM63TSHPVTT12090M 90 3.543 24 .9449 36 1.417 10 .3937 31.9 1.255 70 2.755 12 .4724 5 mm 0.93
                    List price:
                    ₹78,255.00 /each
                    Your price:
                    3869198 KM63TSHPVTT14100M KM63TSHPVTT14100M 100 3.937 27 1.063 36 1.417 10 .3937 33.9 1.334 80 3.149 14 .5512 5 mm 1.05
                      List price:
                      ₹78,096.00 /each
                      Your price:
                      3869199 KM63TSHPVTT16100M KM63TSHPVTT16100M 100 3.937 27 1.063 39 1.535 10 .3937 33.9 1.334 80 3.149 16 .6299 6 mm 1.03
                        List price:
                        ₹98,503.00 /each
                        Your price:
                        3869200 KM63TSHPVTT18100M KM63TSHPVTT18100M 100 3.937 33 1.299 39 1.535 10 .3937 41.9 1.649 80 3.149 18 .7087 6 mm 1.24
                          List price:
                          ₹55,902.00 /each
                          Your price:
                          3869201 KM63TSHPVTT20100M KM63TSHPVTT20100M 100 3.937 33 1.299 41 1.614 10 .3937 41.9 1.649 80 3.149 20 .7874 8 mm 1.21
                            List price:
                            ₹69,805.00 /each
                            Your price:
                            3869202 KM63TSHPVTT25120M KM63TSHPVTT25120M 120 4.724 44 1.732 47 1.85 10 .3937 52.9 2.082 100 3.937 25 .9843 8 mm 1.92
                              List price:
                              ₹101,570.00 /each
                              Your price:
                              3869203 KM63TSHPVTT32120M KM63TSHPVTT32120M 120 4.724 44 1.732 51 2.007 10 .3937 52.9 2.082 100 3.937 32 1.259 8 mm 1.76
                                List price:
                                ₹221,371.00 /each
                                Your price:
