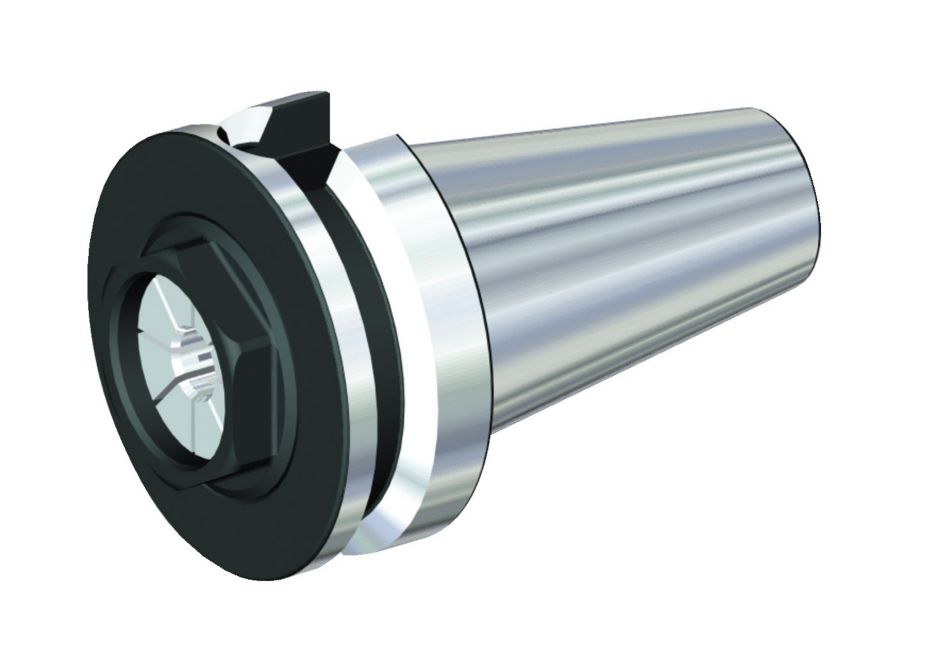

ER Short-BT form AD

ER Single-Angle Collet Chucks

Metric
Inch
SAP Material Number 2978766
ISO Catalog Number BT50SER32046M
ANSI Catalog Number BT50SER32046M
[CST] Catalog Collet Series ER32
[D11] Lock Nut Diameter 35.875 mm
[D11] Lock Nut Diameter 1.412 in
[L1] Gage Length 45.95 mm
[L1] Gage Length 1.809 in
[L9] Clamping Length 50 mm
[L9] Clamping Hole Length 1.97 in
[V] Adjustment Range 28 mm
[V] Adjustment Range 1.102 in
Torque Catalog Newton Meters 136
Stop Screw ID Drive Size 4 mm & 5/32
Weight Kilograms 3.36
See all Product Variants

Uses and application

  • Axial Adjustment - EndAxial Adjustment - End
  • Drilling - Through CoolantDrilling - Through Coolant
  • Shank - Cylindrical  PlainShank - Cylindrical Plain
  • Shank - Cylindrical  WeldonShank - Cylindrical Weldon
  • Shank - SK BT JIS B 6339Shank - SK BT JIS B 6339
  • Shank - Cylindrical with SquareShank - Cylindrical with Square
  • Collet - ER DIN 6499Collet - ER DIN 6499
  • Balance - G 2.5@20,000 min-1Balance - G 2.5@20,000 min-1
