| Material Number | 2007108 |
| ISO Catalog ID | 12251762100 |
| ANSI Catalog ID | 12251762100 |
| Grade | W |

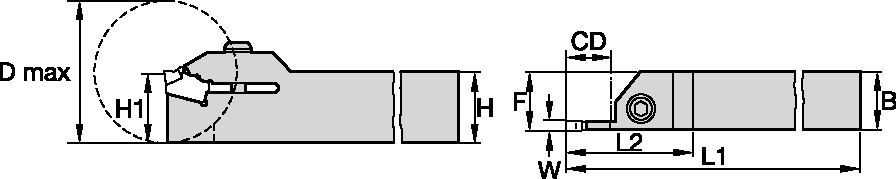

| [W] Groove Width | 2.1 mm |
| [W] Groove Width | 0.0827 in |
| [CD] Cutting Depth | 10 mm |
| [CD] Cutting Depth | 0.3937 in |
| [DMAX] Maximum Bore Diameter | 25.4 mm |
| [DMAX] Maximum Bore Diameter | 1 in |
| [H] Shank Height | 16 mm |
| [H] Shank Height | 0.6299 in |
| [B] Shank Width | 16 mm |
| [B] Shank Width | 0.6299 in |
| [F] F Dimension | 16.2 mm |
| [F] F Dimension | 0.6378 in |
| [L1] Tool Length | 100 mm |
| [L1] Tool Length | 3.937 in |
| [L2] Head Length | 26 mm |
| [L2] Head Length | 1.0236 in |
| [H1] Cutting Height | 16 mm |
| [H1] Cutting Height | 0.6299 in |
