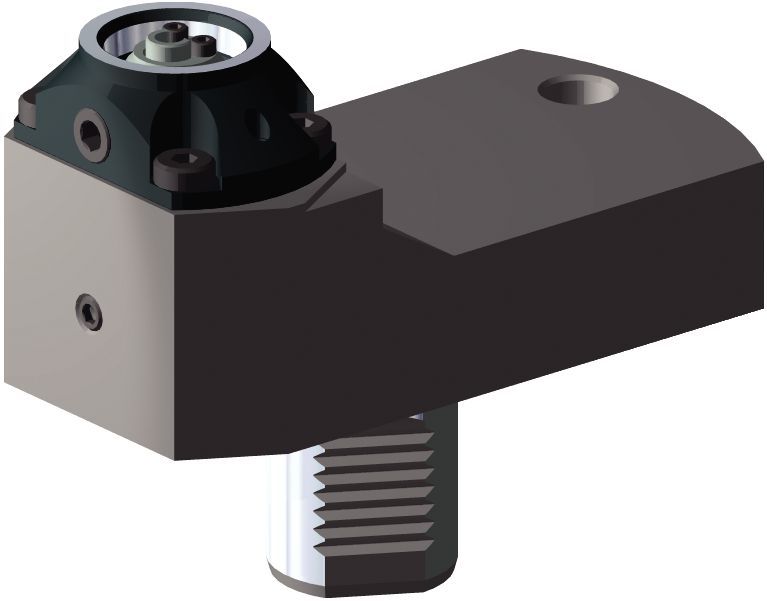

Through Coolant: Axial: Drilling
Shank - KM-TS ISO 26622
Shank - KM-TS ISO 26622Downloaded file will be available after import in the {{cadTool}} tool library.
| Ürün Numarası | 6401906 |
| ISO Katalog No | TACU016KM40SA60908132 |
| AISI Catalog No | TACU016KM40SA60908132 |
| [CSWS] System Size Workpiece Side | KM40 |
| Machine Mount Code | 016 |
| [B1] Front Clearance | 73 mm |
| [B1] Front Clearance | 2.874 in |
| [B2] Overall Width | 158 mm |
| [B2] Overall Width | 6.22 in |
| [D] Adapter / Shank / Bore Diameter | 40 mm |
| [D] Adapter / Shank / Bore Diameter | 1.574 in |
| [F] F Dimension | 50 mm |
| [F] F Dimension | 1.969 in |
| [H2] Overall Height | 80 mm |
| [H2] Overall Height | 3.15 in |
| [L] Overall Length | 131 mm |
| [L] Overall Length | 5.157 in |
| [L1] Gage Length | 80 mm |
| [L1] Gage Length | 3.15 in |
| Coolant Pressure Bar | 100 |
| Coolant Pressure PSI | 1500 |
| Coolant Delivery | I |
| Weight Kilograms | 4.43 |
| Torque Catalog Newton Meters | 12-16 |
| Torque Catalog Foot Pounds | 9-12 |
