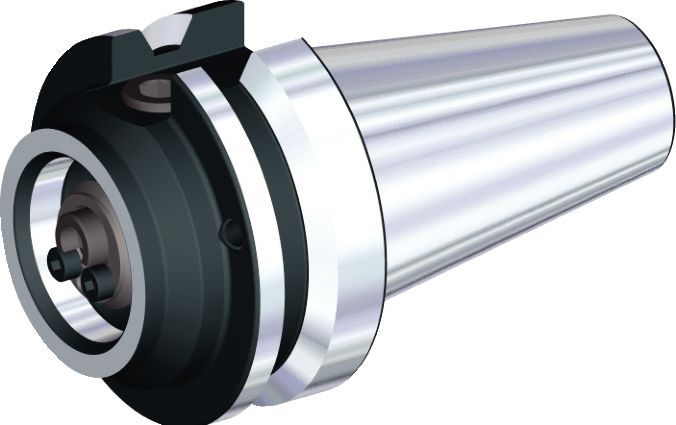

Coolant - Through Coolant Nozzle
Shank - KM-TS ISO 26622
Shank - SK BT JIS B 6339Downloaded file will be available after import in the {{cadTool}} tool library.
| Ürün Numarası | 3783955 |
| ISO Katalog No | BT50BKM50120M |
| AISI Catalog No | BT50BKM50120M |
| [CSWS] System Size Workpiece Side | KM50 |
| [D2] Body Diameter 1 Workpiece Side | 50 mm |
| [D2] Body Diameter 1 Workpiece Side | 1.9685 in |
| [L1] Gage Length | 120 mm |
| [L1] Gage Length | 4.7244 in |
| [L2] Usable Length | 82 mm |
| [L2] Usable Length | 3.2283 in |
| Actuation Screw ID Drive Size | 10 mm |
| Torque Catalog Newton Meters | 27-34 |
| Weight Kilograms | 4.51 |
Coolant - Through Coolant NozzleShank - KM-TS ISO 26622Shank - SK BT JIS B 6339Hız ve ilerleme verileri içeren PDF tablosunu indir
