Face Milling
Helical Milling
Ramping: Blank
Slotting: Square End

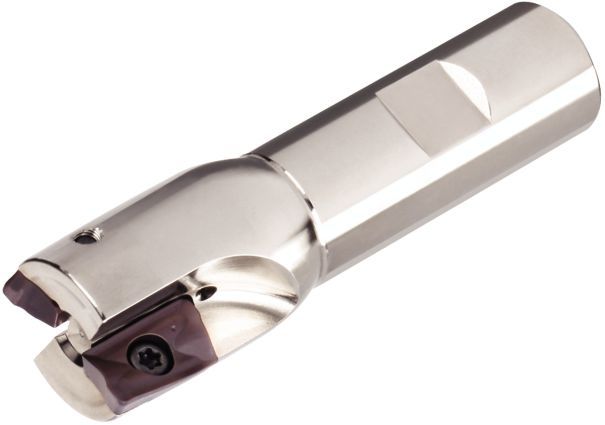

Shank - Cylindrical Weldon 2 Flat
Side Milling/Shoulder Milling: Square End
PocketingDownloaded file will be available after import in the {{cadTool}} tool library.
| Ürün Numarası | 3577771 |
| ISO Katalog No | 15396480000 |
| AISI Catalog No | 15396480000 |
| [D1] Effective Cutting Diameter | 25.4 mm |
| [D1] Effective Cutting Diameter | 1 in |
| [D] Adapter / Shank / Bore Diameter | 19.05 mm |
| [D] Adapter / Shank / Bore Diameter | 0.75 in |
| [L] Overall Length | 88.9 mm |
| [L] Overall Length | 3.5 in |
| [L2] Head Length | 36.5 mm |
| [L2] Head Length | 1.437 in |
| [AP1MAX] 1st Maximum Cutting Depth | 15.7 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.6181 in |
| Number of Inserts | 2 |
| Maximum Ramping Angle | 8 |
| Max RPM | 35000 |
| Coolant Supply | Y |
| Weight Pounds | 0.93 |
Face MillingHelical MillingRamping: BlankSlotting: Square EndShank - Cylindrical Weldon 2 FlatSide Milling/Shoulder Milling: Square EndPocketingİlerleme ve Devir hesaplamak için Çözüm Oluşturun
Bir çözüm oluşturduktan sonra, sadece İlerleme ve Devir simgesini seçin ve sistemimiz öneriler sunacaktır. Makinenizi ve teknik özelliklerinizi ekleyerek bilgileri özelleştirebilir veya kaydırıcıları kullanarak ayarlamalar yapabilirsiniz.
