SCLC 95°

İç çap kesme ÜNİTELERİ • S Bağlama

Metrik
İnç
SAP Material Number 6319836
ISO Catalog Number PSC50S16ESCLCL09
ANSI Catalog Number PSC50S16ESCLCL09

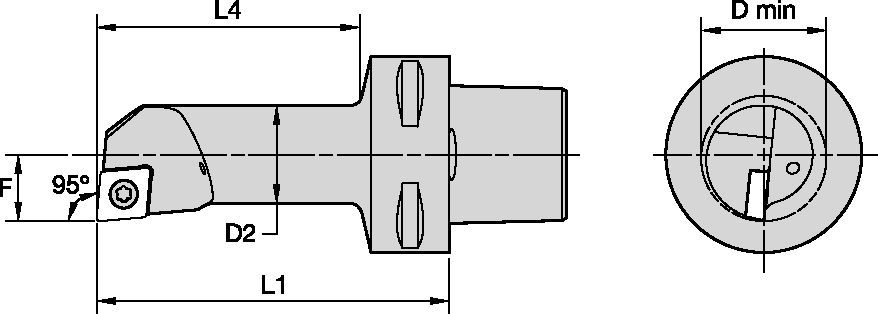

[D2] Body Diameter 1 Workpiece Side 16 mm
[D2] Body Diameter 1 Workpiece Side .6299 in
[L1] Tool Length 70 mm
[L1] Tool Length 2.755 in
[L4] Maximum Boring Depth 46 mm
[L4] Maximum Boring Depth 1.811 in
[F] F Dimension 11 mm
[F] F Dimension .4331 in
[DM] Minimum Bore Diameter 20 mm
[DM] Minimum Bore Diameter .7874 in
Gage Insert CC..09T308/CC..3252
Weight Kilograms 0.61
Tüm Ürün Değişkenlerini görün

Kullanım ve uygulama alanları

  • Manufacturer’s Specs: ISO 26623Manufacturer’s Specs: ISO 26623
  • Shank - PSCShank - PSC
  • Coolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 80 bar Maximum
  • Coolant: Through Coolant 1200 psi MaximumCoolant: Through Coolant 1200 psi Maximum

İş Parçası Malzemeleri

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
C CFRP Materials

Makine Tarafı

yükleniyor...

İş Parçası Tarafı

yükleniyor...

Yedek Parçalar for SCLC 95°

Spare Part
    PSC S CLAMP 5S PARTS KIT PSC S CLAMP 5S PARTS KIT
    PSC S CLAMP 5S PARTS KIT
