Manufacturer’s Specs: ISO 26623
Shank - PSC
Coolant: Through Coolant 80 bar Maximum
Coolant: Through Coolant 1200 psi MaximumDownloaded file will be available after import in the {{cadTool}} tool library.
| Ürün Numarası | 6319891 |
| ISO Katalog No | PSC50S25GSDUCR11 |
| ANSI Catalog No | PSC50S25GSDUCR11 |

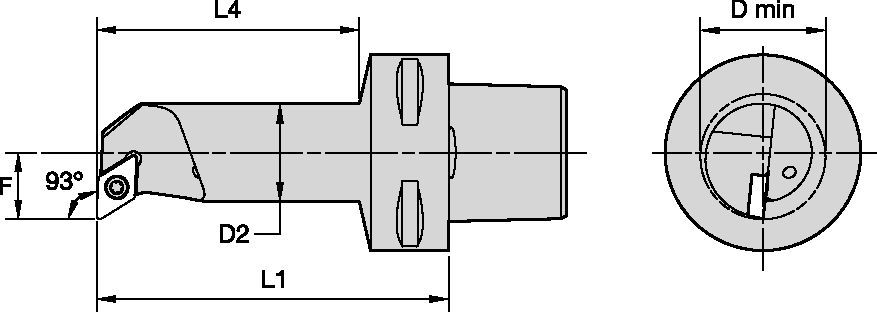

| [D2] Body Diameter 1 Workpiece Side | 25 mm |
| [D2] Body Diameter 1 Workpiece Side | 0.9843 in |
| [L1] Tool Length | 90 mm |
| [L1] Tool Length | 3.5433 in |
| [L4] Maximum Boring Depth | 67 mm |
| [L4] Maximum Boring Depth | 2.6378 in |
| [F] F Dimension | 17 mm |
| [F] F Dimension | 0.6693 in |
| [DM] Minimum Bore Diameter | 32 mm |
| [DM] Minimum Bore Diameter | 1.2598 in |
| Gage Insert | DC..11T308/DC..3252 |
| Weight Kilograms | 0.77 |
Manufacturer’s Specs: ISO 26623Shank - PSCCoolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 1200 psi Maximumİlerleme ve Devir hesaplamak için Çözüm Oluşturun
Bir çözüm oluşturduktan sonra, sadece İlerleme ve Devir simgesini seçin ve sistemimiz öneriler sunacaktır. Makinenizi ve teknik özelliklerinizi ekleyerek bilgileri özelleştirebilir veya kaydırıcıları kullanarak ayarlamalar yapabilirsiniz.
