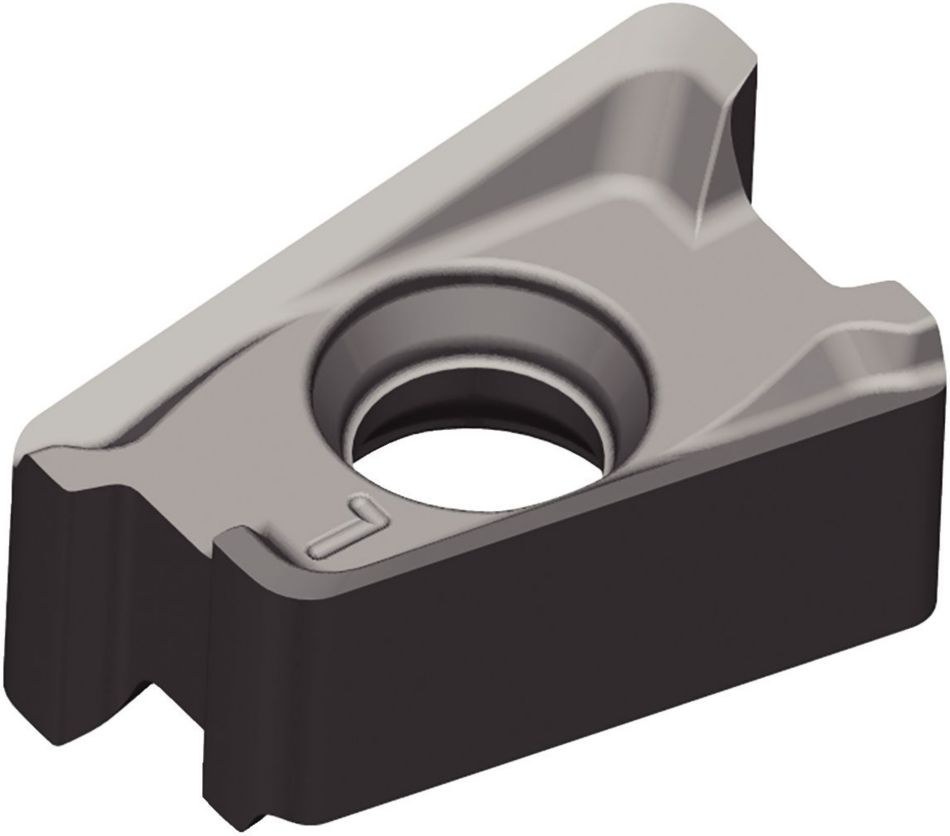

| Ürün Numarası | 6425366 |
| ISO Katalog No | XNPU100408ERML |
| ANSI Catalog No | XNPU1002ERML |
| Grade | WK15PM |
| Cutting Edges per Insert | 4 |

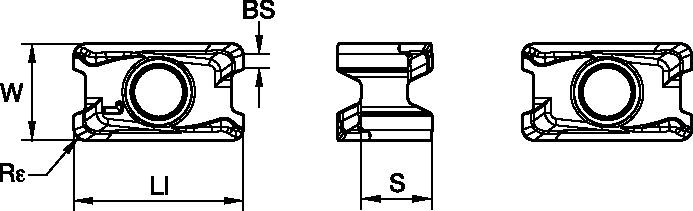

| [LI] Insert Length | 11.6 mm |
| [LI] Insert Length | 0.457 in |
| [S] Insert Thickness | 4.83 mm |
| [S] Insert Thickness | 0.19 in |
| [W] Insert Width | 6.6 mm |
| [W] Insert Width | 0.2598 in |
| [BS] Corner Facet Length | 0.9 mm |
| [BS] Corner Facet Length | 0.036 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
| Average Chip Thickness [HM] | 0.02 mm |
| Average Chip Thickness [HM] | 0.0008 in |
İlerleme ve Devir hesaplamak için Çözüm Oluşturun
Bir çözüm oluşturduktan sonra, sadece İlerleme ve Devir simgesini seçin ve sistemimiz öneriler sunacaktır. Makinenizi ve teknik özelliklerinizi ekleyerek bilgileri özelleştirebilir veya kaydırıcıları kullanarak ayarlamalar yapabilirsiniz.
| Radyal kesme derinliği (ae) yüzdesi olarak programlanan diş başına ilerleme (fz) | ||||||||||||||||
| Kesici uç geometrisi | 5% | 10% | 20% | 30% | 40–100% | Kesici uç geometrisi | ||||||||||
| .E..ALP | 0,12 | 0,23 | 0,32 | 0,08 | 0,17 | 0,23 | 0,06 | 0,13 | 0,18 | 0,06 | 0,11 | 0,15 | 0,05 | 0,10 | 0,14 | .E..ALP |
| .E..ML | 0,18 | 0,28 | 0,37 | 0,13 | 0,20 | 0,27 | 0,10 | 0,15 | 0,20 | 0,09 | 0,13 | 0,17 | 0,08 | 0,12 | 0,16 | .E..ML |
| .S..MM | 0,23 | 0,35 | 0,46 | 0,17 | 0,25 | 0,33 | 0,13 | 0,19 | 0,25 | 0,11 | 0,17 | 0,22 | 0,10 | 0,15 | 0,20 | .S..MM |
| .S..MH | 0,23 | 0,43 | 0,58 | 0,17 | 0,31 | 0,42 | 0,13 | 0,23 | 0,31 | 0,11 | 0,20 | 0,27 | 0,10 | 0,18 | 0,25 | .S..MH |
| Hafif işleme | Genel amaçlı kullanım | Ağır işleme |
| Radyal kesme derinliği (ae) yüzdesi olarak programlanan diş başına ilerleme (fz) | ||||||||||||||||
| Kesici uç geometrisi | 5% | 10% | 20% | 30% | 40–100% | Kesici uç geometrisi | ||||||||||
| .E..ALP | .005 | .009 | .013 | .003 | .007 | .009 | .003 | .005 | .007 | .002 | .004 | .006 | .002 | .004 | .006 | .E..ALP |
| .E..ML | .007 | .011 | .015 | .005 | .008 | .011 | .004 | .006 | .008 | .003 | .005 | .007 | .003 | .005 | .006 | .E..ML |
| .S..MM | .009 | .014 | .018 | .007 | .010 | .013 | .005 | .007 | .010 | .004 | .006 | .008 | .004 | .006 | .008 | .S..MM |
| .S..MH | .009 | .016 | .022 | .007 | .012 | .016 | .005 | .009 | .012 | .004 | .008 | .010 | .004 | .007 | .010 | .S..MH |
| Hafif işleme | Genel amaçlı kullanım | Ağır işleme |
| Malzeme grubu | WK15CM | WK15PM | WK15PM | WN25PM | WP25PM | WP35CM | WP40PM | WS40PM | WU10PM | |||||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 330 | 285 | 270 | 455 | 395 | 370 | 295 | 260 | 245 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 275 | 240 | 200 | 280 | 255 | 230 | 250 | 215 | 180 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 255 | 215 | 175 | 255 | 230 | 205 | 230 | 195 | 160 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | 225 | 185 | 150 | 190 | 175 | 160 | 205 | 170 | 135 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | 185 | 170 | 150 | 260 | 230 | 210 | 170 | 155 | 135 | 170 | 145 | 120 | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 125 | 100 | 160 | 135 | 110 | 150 | 115 | 90 | 150 | 110 | 80 | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 205 | 180 | 165 | 205 | 185 | 155 | 195 | 170 | 155 | 210 | 170 | 140 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 185 | 160 | 130 | 185 | 160 | 140 | 175 | 150 | 125 | 180 | 145 | 120 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 140 | 120 | 95 | 145 | 130 | 115 | 130 | 115 | 90 | 145 | 110 | 85 | – | – | – | |
| K | 1 | 420 | 385 | 340 | 270 | 245 | 215 | 360 | 290 | 245 | – | – | – | 230 | 205 | 185 | 295 | 265 | 240 | – | – | – | – | – | – | 295 | 265 | 240 |
| 2 | 335 | 295 | 275 | 210 | 190 | 175 | 280 | 230 | 195 | – | – | – | 180 | 160 | 150 | 235 | 210 | 190 | – | – | – | – | – | – | 230 | 205 | 190 | |
| 3 | 280 | 250 | 230 | 175 | 160 | 145 | 210 | 175 | 140 | – | – | – | 150 | 135 | 120 | 195 | 175 | 160 | – | – | – | – | – | – | 195 | 175 | 160 | |
| N | 1 | – | – | – | – | – | – | – | – | – | 1075 | 945 | 875 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | 70 | 50 | 35 | – | – | – | – | – | – | 60 | 50 | 30 | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 160 | 130 | 90 |
| Malzeme grubu | WK15CM | WK15PM | WK15PM | WN25PM | WP25PM | WP35CM | WP40PM | WS40PM | WU10PM | |||||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 1085 | 935 | 885 | 1495 | 1295 | 1215 | 970 | 855 | 805 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 900 | 785 | 655 | 920 | 835 | 755 | 820 | 705 | 590 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 835 | 705 | 575 | 835 | 755 | 675 | 755 | 640 | 525 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | 740 | 605 | 490 | 625 | 575 | 525 | 675 | 560 | 445 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | 605 | 560 | 490 | 855 | 755 | 690 | 560 | 510 | 445 | 560 | 475 | 395 | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | 540 | 410 | 330 | 525 | 445 | 360 | 490 | 375 | 295 | 490 | 360 | 260 | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 675 | 590 | 540 | 675 | 605 | 510 | 640 | 560 | 510 | 690 | 560 | 460 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 605 | 525 | 425 | 605 | 525 | 460 | 575 | 490 | 410 | 590 | 475 | 395 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 460 | 395 | 310 | 475 | 425 | 375 | 425 | 375 | 295 | 475 | 360 | 280 | – | – | – | |
| K | 1 | 1380 | 1265 | 1115 | 885 | 805 | 705 | 1180 | 950 | 805 | – | – | – | 755 | 675 | 605 | 970 | 870 | 785 | – | – | – | – | – | – | 970 | 870 | 785 |
| 2 | 1100 | 970 | 900 | 690 | 625 | 575 | 920 | 755 | 640 | – | – | – | 590 | 525 | 490 | 770 | 690 | 625 | – | – | – | – | – | – | 755 | 675 | 625 | |
| 3 | 920 | 820 | 755 | 575 | 525 | 475 | 690 | 575 | 460 | – | – | – | 490 | 445 | 395 | 640 | 575 | 525 | – | – | – | – | – | – | 640 | 575 | 525 | |
| N | 1 | – | – | – | – | – | – | – | – | – | 3525 | 3100 | 2870 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | – | – | – | 130 | 115 | 100 | 130 | 115 | 80 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 80 | – | – | – | 130 | 115 | 100 | 130 | 115 | 80 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 130 | 80 | – | – | – | 165 | 130 | 100 | 165 | 130 | 80 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | 230 | 165 | 115 | – | – | – | 215 | 165 | 115 | 195 | 165 | 100 | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 525 | 425 | 295 |
| Hafif işleme | Genel amaçlı kullanım | Ağır işleme | ||||
| Malzeme grubu | Geometri | Kalite | Geometri | Kalite | Geometri | Kalite |
| P1–P2 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM |
| P3–P4 | XNGU-ML | WP40PM | XNPU-MM | WP40PM | XNPU-MM | WP40PM |
| P5–P6 | XNGU-MM | WP25PM | XNPU-MM | WP35CM | XNPU-MM | WP40PM |
| M1–M2 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| M3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| K1–K2 | XNPU-ML | WK15PM | XNGU-MH | WK15CM | XNGU-MH | WK15CM |
| K3 | XNPU-MM | WK15PM | XNGU-MH | WP35CM | XNGU-MH | WP35CM |
| N1–N2 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM |
| N3 | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM | XNGU-ALP | WN25PM |
| S1–S2 | XNGU-ML | WP25PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| S3 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| S4 | XNGU-ML | WS40PM | XNGU-ML | WS40PM | XNPU-MM | WS40PM |
| H1 | XNGU-ML | WU10PM | XNGU-MM | WU10PM | – | – |
