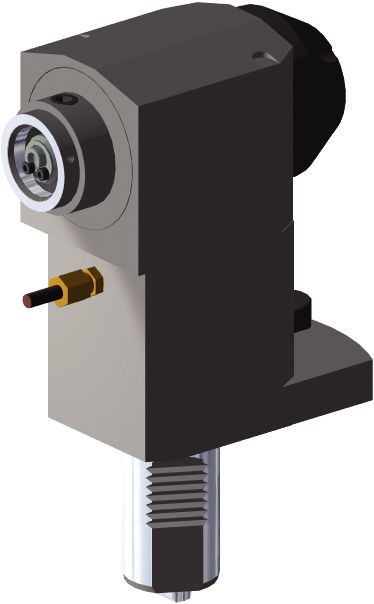

Driven Tool Radial • KM™ • TACU016KM40DR60908103, TACU016KM40DR60908107

Mazak™ • Driven Tool Radial • KM™ • MMC 016

Metric
Inch
SAP Material Number 6401905
ISO Catalog Number TACU016KM40DR60908107
ANSI Catalog Number TACU016KM40DR60908107
[CSWS] System Size Workpiece Side KM40
Machine Mount Code 016
[B2] Overall Width 156.5 mm
[B2] Overall Width 6.161 in
[D] Adapter / Shank / Bore Diameter 40 mm
[D] Adapter / Shank / Bore Diameter 1.575 in
[F] F Dimension 72.5 mm
[F] F Dimension 2.854 in
[H2] Overall Height 76 mm
[H2] Overall Height 2.992 in
[L] Overall Length 246 mm
[L] Overall Length 9.685 in
[L1] Gage Length 130 mm
[L1] Gage Length 5.118 in
[LPR] Protruding Length 168 mm
[LPR] Protruding Length 6.614 in
Torque Machine Spindle Nm 50
Coolant Pressure Bar 70
Coolant Pressure PSI 1000
Coolant Delivery I/E
[CS1] Coolant Supply Exit Size G 1/8
Max RPM 6000
Weight Kilograms 8.8
Torque Catalog Newton Meters 12-16
Torque Catalog Foot Pounds 9-12
See all Product Variants

Uses and application

  • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622

Features and benefits

Machine Series:
  • Quick Turn Nexus 200, 250 M, MY (12 Station Turret)

  • Quick Turn Nexus 200, 250 MS, MSY (12 Station Turret)

  • Super Quadrex 200, 250 M (12 Station Turret)

  • Super Quick Turn 200, 250, M, MY (12 Station Turret)

  • Super Quick Turn 200, 250, MS, MSY (12 Station Turret)

Machine Side

loading...

Workpiece Side

loading...
