Cast Iron Milling Beast

M8090 is a fine pitch face milling series for rough, semi-finish and finish milling of a variety of cast and nodular irons at high-feed rates.

The M8090 face mill is designed with an 89-degree approach angle for rough and semi-finish milling applications in cast iron and nodular iron with the added flexibility of using carbide or ceramic inserts on the same cutter based on productivity needs.

The M8090-F finish mill is designed to achieve a surface finish <1.6 microns Ra in cast iron finish milling applications at high feeds.

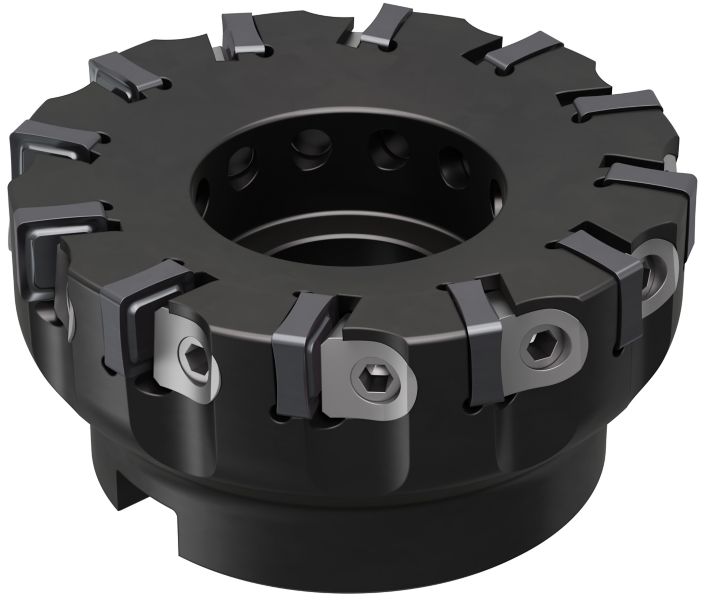

WIDIA M8090 series face mill

M8090 Face Mill

Rough and semi-finish milling of cast iron and nodular iron

  • 89-degree approach angle for machining close to fixture elements
  • Eight cutting edges on the insert for low cost per component
  • Wedge clamping system that easily indexes the insert and reduces setup times
  • Positive insert geometry
WIDIA M8090-F series face mill

M8090-F Series Face Mill

Semi-finish and finish milling of cast iron and nodular iron

  • Fine-pitch cutter with fixed pocket for semi-finisher inserts and adjustable pockets for wiper inserts
  • Eight cutting edges per insert and four cutting edges on wiper insert
  • Wedge clamping system that easily indexes insert
  • Axial adjustable wiper pocket seats to set up axial run out with .005mm

Inserts are offered in carbide grades: WK15PM, ceramic grade WK25YM and PcBN grade WBK40U.

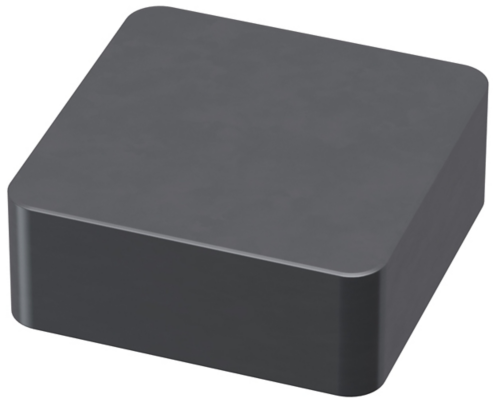

WIDIA M8090 series SNEN ceramic insert

SNEN Insert

Ceramic insert with eight effective cutting edges for cast iron applications

WIDIA M8090 series SNHF roughing insert

-MM Insert

Insert with eight effective cutting edges and a positive geometry to work on weak fixtures in cast iron applications

WIDIA M8090-F series SDEN wiper insert

M8090-F Wiper Insert

Wiper insert with four effective cutting edges for cast iron finishing applications
