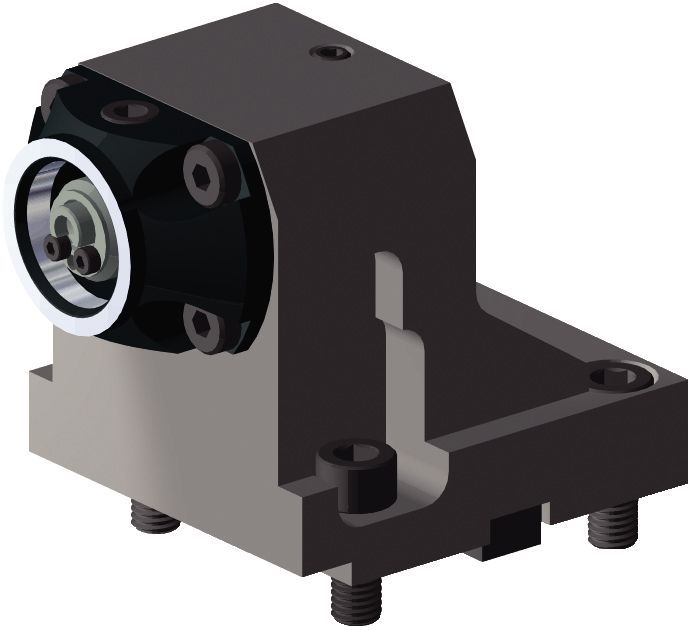

Turret Adapted Clamping Units

Hyundai WIA • Static Tool Radial • KM™ • MMC 035

Features and benefits
Machine Series:
  • L230LMSA

  • LM1600, 1800TTSY

  • SKT160, 180TTMS/TTSY (BMT55)
Product specifications
Product # 6391658
ISO Catalog Number TACU035KM40SR60945566
ANSI Catalog Number TACU035KM40SR60945566
[CSWS]System SizeWorkpieceSide KM40
Machine Mount Code 035
[B2]Overall Width Metric 122,5
[F] F Dimension Metric 80
[H2] Overall Height Metric 85
[L1]Gage Length 1 Metric 70
[LPR]Protruding Length Metric 92
Coolant Pressure Bar 100
Coolant Pressure PSI 1500
Weight Kilograms 3.49
Torque Catalog Newton Meters 12-16
Torque Catalog Foot Pounds 9-12
Need help? Contact our customer service team.
Contact us

Static Tool Radial • KM™

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [CSWS]System SizeWorkpieceSide Machine Mount Code [B2]Overall Width Metric [F] F Dimension Metric [H2] Overall Height Metric [L1]Gage Length 1 Metric [LPR]Protruding Length Metric Coolant Pressure Bar Coolant Pressure PSI Weight Kilograms Torque Catalog Newton Meters Torque Catalog Foot Pounds
6391658 TACU035KM40SR60945566 TACU035KM40SR60945566 KM40 035 122,5 80 85 70 92 100 1500 3.49 12-16 9-12

Product Usage

Uses and application

  • Through Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622

Spare Parts for Static Tool Radial • KM™ • TACU035KM40SR60945566

TORQUE WRENCH
TORQUE WRENCH
SOCKET HEAD SCREW DIN 912 M10X
SOCKET HEAD SCREW DIN 912 M10X
KM40 NCM FLANGE MOUNT HEIGHT:2
KM40 NCM FLANGE MOUNT HEIGHT:2
CLAMPING UNIT SPARE PARTS PKG
CLAMPING UNIT SPARE PARTS PKG
