    ST-KMTS • Screw-On Adapters • Modular Milling Cutters

    KM80TS™ and HSK 40A Shank Tools

    Material Number4137841

    ISO Catalog IDKM80TSSTC16137MANSI Catalog IDKM80TSSTC16137M

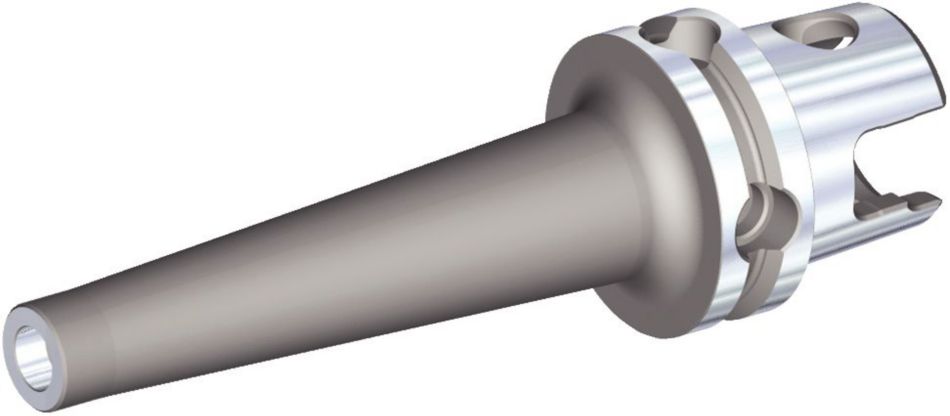

    KM80TS™ • Shank Tools KM80TS™ and HSK 40A Shank Tools
    KM80TS™ • Shank Tools KM80TS™ and HSK 40A Shank Tools
    KM80TS™ • Shank Tools KM80TS™ and HSK 40A Shank Tools
    Open expanded view
    KM80TS™ • Shank Tools KM80TS™ and HSK 40A Shank Tools
    KM80TS™ • Shank Tools KM80TS™ and HSK 40A Shank Tools
    Generic representation
    List Price
    $450.48/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Balance: G 6.3 @ 15,000Balance: G 6.3 @ 15,000
    • Shank - Screw-OnShank - Screw-On
    • Milling - Through CoolantMilling - Through Coolant
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 4137841
    Metric
    Inch
    Material Number4137841
    ISO Catalog IDKM80TSSTC16137M
    ANSI Catalog IDKM80TSSTC16137M
    [DCB] Connection Bore Diameter17 mm
    [DCB] Connection Bore Diameter0.669 in
    Connection Thread Size [G]M16
    [D2] Body Diameter 1 Workpiece Side 29 mm
    [D2] Body Diameter 1 Workpiece Side 1.142 in
    [D21] Body Diameter 2 Workpiece Side35 mm
    [D21] Body Diameter 2 Workpiece Side1.378 in
    [L1] Gage Length137 mm
    [L1] Gage Length5.394 in
    [L2] Usable Length 10 mm
    [L2] Usable Length 0.3937 in
    [L20] Beta Taper End Length 107 mm
    [L20] Beta Taper End Length 4.213 in
    [L21] Usable Length109 mm
    [L21] Usable Length4.291 in
    Weight Kilograms1.78
    See all Product Variants
