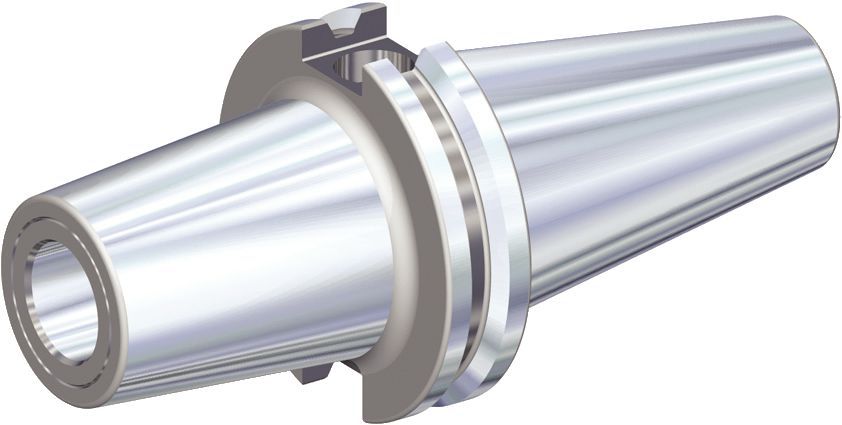

Shrink Fit Toolholders High Torque (HT)

Features and benefits
  • Balanceable — fine tune with optional M6 set screws.

  • Suitable for carbide only, designated by groove in front face (requirements below).

  • 10 kW power or greater Shrink Fit device must be used.
Product specifications
Product # 3683516
ISO Catalog Number CV40ZTTHT075275
ANSI Catalog Number CV40ZTTHT075275
[D1]Adapt/Shank/BoreDiaWKPS F 3/4
[D2]Body Dia 1 Workpce Side In 1.339
[D21]Body Dia 2 Workpce Sde In 1.652
[L1]Gage Length 1 Inch 2.750
[L9]Clamping Length Inch 1.614
Weight Pounds 2.34
Need help? Contact our customer service team.
Contact us

TT HT HPV IN-CV Z Form AD

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [D1]Adapt/Shank/BoreDiaWKPS F [D2]Body Dia 1 Workpce Side In [D21]Body Dia 2 Workpce Sde In [L1]Gage Length 1 Inch [L9]Clamping Length Inch Weight Pounds
3683514 CV40ZTTHT050275 CV40ZTTHT050275 1/2 .9450 1.258 2.750 1.417 2.16
3683516 CV40ZTTHT075275 CV40ZTTHT075275 3/4 1.339 1.652 2.750 1.614 2.34

Product Usage

Uses and application

  • Shank - Cylindrical Plain ≤h6
  • Shank - Cylindrical Weldon® ≤h6
  • Shank - Cylindrical Whistle Notch ≤h6
  • Shank - SK CAT(CV) ANSI B5.50
  • Shank - SK CAT(CV) ANSI B5.50 5/8"–11 unc Drawbar
  • Axial Adjustment - End
  • Balance - G 6.3@15,000 min-1
  • Shank - 5/8"–11 unc Drawbar
  • Accuracy - 3μm or Less
  • Drilling - Through Coolant
