TOP DRILL M1™ • TopSTEP Chamfer and Counterboring Inserts

Features and benefits

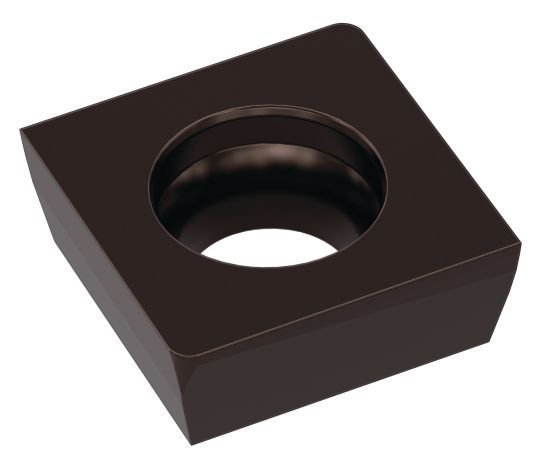

TopSTEP SH Conterboring Inserts
  • 90° insert can be positioned in alternative angles.

  • Very good chip forming and surface quality.

  • Two times indexable.

  • Stocked standards in six insert sizes.
Product specifications
Product # 5983390
ISO Catalog Number SXHX060204R20
ANSI Catalog Number SXHX060204R20
Grade WP20PH
[D] Insert IC Size Metric 6,350
[D] Insert IC Size Inch .2500
[D1] Insert Hole Size Metric 2,850
[D1] Insert Hole Size Inch .1122
[S] Insert Thickness Metric 2,380
[S] Insert Thickness Inch .0940
[REPSILON] Corner Radius MM 0,400
[REPSILON] Corner Radius Inch .0160
[ALPHAN] Clearance Angle Major 7
[ALPHANM] Clearance Ang Minor 7
Need help? Contact our customer service team.
Contact us

TopSTEP SH Counterboring Inserts

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [D] Insert IC Size Metric [D] Insert IC Size Inch [D1] Insert Hole Size Metric [D1] Insert Hole Size Inch [S] Insert Thickness Metric [S] Insert Thickness Inch [REPSILON] Corner Radius MM [REPSILON] Corner Radius Inch [ALPHAN] Clearance Angle Major [ALPHANM] Clearance Ang Minor
5983390 SXHX060204R20 SXHX060204R20 WP20PH 6,350 .2500 2,850 .1122 2,380 .0940 0,400 .0160 7 7
5983701 SXHX060208R20 SXHX060208R20 WP20PH 6,350 .2500 2,850 .1122 2,380 .0940 0,800 .0310 7 7
5983702 SXHX070304R20 SXHX070304R20 WP20PH 7,937 .3120 2,850 .1122 3,180 .1250 0,400 .0160 7 7
5983703 SXHX070308R20 SXHX070308R20 WP20PH 7,937 .3120 2,850 .1122 3,180 .1250 0,800 .0310 7 7
5983704 SXHX090304R20 SXHX090304R20 WP20PH 9,520 .3750 3,500 .1378 3,180 .1250 0,400 .0160 7 7
5983705 SXHX090308R20 SXHX090308R20 WP20PH 9,520 .3750 3,500 .1378 3,180 .1250 0,800 .0310 7 7

Product Usage

Uses and application

  • Counter Sinking/ Stroke Chamfering

Grades

  • WP20PH
