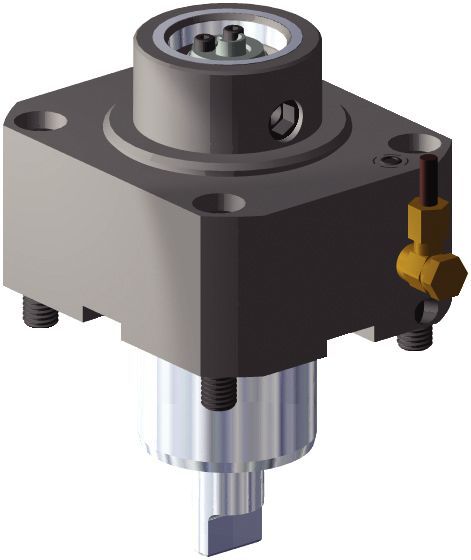

Turret Adapted Clamping Units

DMG Mori • Driven Tool Axial • KM™ • MMC 002

Features and benefits
Machine Series:
  • NL/NLX 1500-4000 MC/Y/SMC/SY

  • NLX 4000 (High Torque Milling)

  • NT 4200-5400

  • NZX 2500 (12 Station Turret)
Product specifications
Product # 6201266
ISO Catalog Number TACU002KM50DA60648447
ANSI Catalog Number TACU002KM50DA60648447
[CSWS]System SizeWorkpieceSide KM50
Machine Mount Code 002
[B2]Overall Width Metric 130
[D]Adapter/Shank/Bore Dia mm 59,9
[H2] Overall Height Metric 108
[L] Overall Length Metric 183,5
[L1]Gage Length 1 Metric 92
Torque Machine Spindle Nm 100
Coolant Pressure Bar 70
Coolant Pressure PSI 1000
Coolant Delivery Internal & External
[CS1]Coolant Supply Exit Size M12X1
Max RPM 6000
Weight Kilograms 8.12
Torque Catalog Newton Meters 27-34
Torque Catalog Foot Pounds 20-25
Need help? Contact our customer service team.
Contact us

Driven Tool Axial • KM™

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [CSWS]System SizeWorkpieceSide Machine Mount Code [B2]Overall Width Metric [D]Adapter/Shank/Bore Dia mm [H2] Overall Height Metric [L] Overall Length Metric [L1]Gage Length 1 Metric Torque Machine Spindle Nm Coolant Pressure Bar Coolant Pressure PSI Coolant Delivery [CS1]Coolant Supply Exit Size Max RPM Weight Kilograms Torque Catalog Newton Meters Torque Catalog Foot Pounds
6201268 TACU002KM40DA60648448 TACU002KM40DA60648448 KM40 002 130 59,9 108 177,7 86,50 100 70 1000 External M12X1 10000 7.90 12-16 9-12
6201265 TACU002KM50DA60648445 TACU002KM50DA60648445 KM50 002 130 59,9 108 183 92 100 70 1000 External M12X1 6000 8.39 27-34 20-25
6201266 TACU002KM50DA60648447 TACU002KM50DA60648447 KM50 002 130 59,9 108 183,5 92 100 70 1000 Internal & External M12X1 6000 8.12 27-34 20-25
6201269 TACU002KM40DA60648449 TACU002KM40DA60648449 KM40 002 130 59,9 108 177,7 86,50 100 70 1000 Internal & External M12X1 10000 7.91 12-16 9-12

Product Usage

Uses and application

  • Through Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622

Spare Parts for Driven Tool Axial • KM™ • TACU002KM40DA60648448, TACU002KM40DA60648449, TACU002KM50DA60648445, TACU002KM50DA60648447

TORQUE WRENCH
TORQUE WRENCH
CLAMPING UNIT SPARE PARTS PKG
CLAMPING UNIT SPARE PARTS PKG
