List 4103
Product Similar To :
Back To |

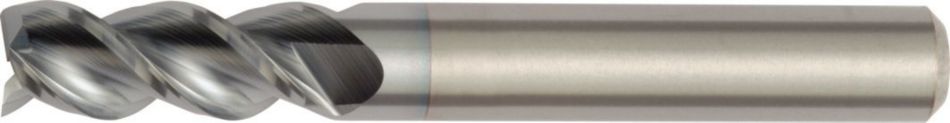

List 4103
Series 4103
Material Number1656512
ISO Catalog ID410314014..ANSI Catalog ID410314014..
List Price
/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
- P Steel
- M Stainless Steel
- K Cast Iron
- N Non-Ferrous
- S High-Temp Alloys
- H Hardened Materials
Ramping: Blank
Slotting: Square End
Corner Style: Square End
Side Milling/Shoulder Milling: Square End
Helix Angle: 45°
38571
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch
| Material Number | 1656512 |
| ISO Catalog ID | 410314014.. |
| ANSI Catalog ID | 410314014.. |
| Grade | UNCOATED |
Workpiece Materials
- Steel
- Stainless Steel
- Cast Iron
- Non-Ferrous
- High-Temp Alloys
- Hardened Materials
Uses and application
Features and benefits
- Center cutting.
- Standard items listed. Additional styles and coatings made to order.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
Application Data
Series 4103
 |  |  | |||||||||||||||||
| Side Milling (A) and Slotting (B) | Uncoated | TiCN | Recommended feed per tooth (fz = mm/th) for side milling (A). For slotting (B), reduce fz by 20%. | ||||||||||||||||
| A | B | Cutting Speed | Cutting Speed | D1 | |||||||||||||||
| Material | ap | ae | ap | Min | Max | Min | Max | mm | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| N | 1 | 1 x D | 0,5 x D | 0,7 x D | 500 | – | 2000 | 500 | – | 2000 | fz | 0,027 | 0,036 | 0,054 | 0,072 | 0,090 | 0,108 | 0,144 | 0,180 |
| 2 | 1 x D | 0,5 x D | 0,7 x D | 500 | – | 1500 | 500 | – | 1500 | fz | 0,024 | 0,032 | 0,049 | 0,065 | 0,081 | 0,097 | 0,130 | 0,162 | |
| Material | | | | ||||||||||||||||
| Side Milling (A) and Slotting (B) | Uncoated | TiCN | Recommended feed per tooth (fz = mm/th) for side milling (A). For slotting (B), reduce fz by 20%. | ||||||||||||||||
| A | B | Cutting Speed | Cutting Speed | D1 | |||||||||||||||
| ap | ae | ap | Min | Max | Min | Max | mm | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||||
| N | 1 | 1 x D | 0,5 x D | 0,7 x D | 500 | – | 2000 | 500 | – | 2000 | fz | 0,027 | 0,036 | 0,054 | 0,072 | 0,090 | 0,108 | 0,144 | 0,180 |
| 2 | 1 x D | 0,5 x D | 0,7 x D | 500 | – | 1500 | 500 | – | 1500 | fz | 0,024 | 0,032 | 0,049 | 0,065 | 0,081 | 0,097 | 0,130 | 0,162 | |
