    Series 5321 • Standard Pipe Chamfer • Standard Projection

    NPT/ANPT and NPTF Spiral-Flute Production Taper Pipe Taps

    Material Number2748101

    ISO Catalog ID16284ANSI Catalog ID16284

    Series 5321 • Standard Pipe Chamfer • Standard Projection
    Series 5321 • Standard Pipe Chamfer • Standard Projection
    Series 5321 • Standard Pipe Chamfer • Standard Projection
    Series 5321 • Standard Pipe Chamfer • Standard Projection
    Open expanded view
    Series 5321 • Standard Pipe Chamfer • Standard Projection
    Series 5321 • Standard Pipe Chamfer • Standard Projection
    Series 5321 • Standard Pipe Chamfer • Standard Projection
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Tapping: Pipe ThreadTapping: Pipe Thread
    • 3849038490
    • 3854138541
    • 3854338543
    • Flood Coolant: TappingFlood Coolant: Tapping
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 2748101
    Drawings for 2748101
    Metric
    Inch
    Material Number2748101
    ISO Catalog ID16284
    ANSI Catalog ID16284

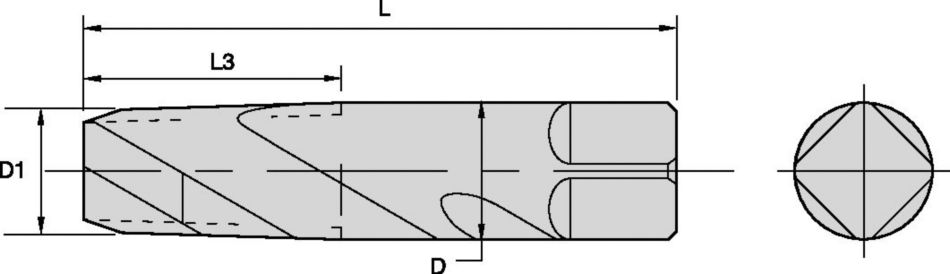

    [D1-TDZ] Thread Diameter Size1/4 - 18
    [L] Overall Length 61.913 mm
    [L] Overall Length 2.4375 in
    [L3] Thread Length 26.988 mm
    [L3] Thread Length 1.0625 in
    [D] Adapter / Shank / Bore Diameter14.288 mm
    [D] Adapter / Shank / Bore Diameter0.5625 in
    [Z] Number of Flutes4
    Type of ThreadNPTF
    See all Product Variants

    Uses and application

    • Tapping: Pipe ThreadTapping: Pipe Thread
    • 3849038490
    • 3854138541
    • 3854338543
    • Flood Coolant: TappingFlood Coolant: Tapping

    Features and benefits

    Features and Benefits:
    • Manufactured from select tap high-speed steel.
    • Ground threads standard in American Standard Pipe Form (NPT) and American Standard Dryseal Pipe Form (NPTF).
    • NPT threads require the use of a sealer, such as Teflon® tape or pipe compound.
    • NPTF dryseal threads give a pressure-tight joint without the use of a sealer.
    • Uncoated taps standard; coatings available as a stock modification.
    • Spiral flutes lift chips out of the tapped hole reducing stop lines.
    • Most effective in materials that produce long, stringy chips.
