      Series SM Pointed Cone
      Series SM Pointed Cone
      Series SM Pointed Cone
      Series SM Pointed Cone
      Select the files you wish to request
      Download CAD Drawings

      Series SM Pointed Cone • Master-Cut Burs • Inch

      Series SM Pointed Cone

      Metric
      Inch
      SAP Material Number 2729423
      ISO Catalog Number M41490
      ANSI Catalog Number M41490
      Identification Number SM-1

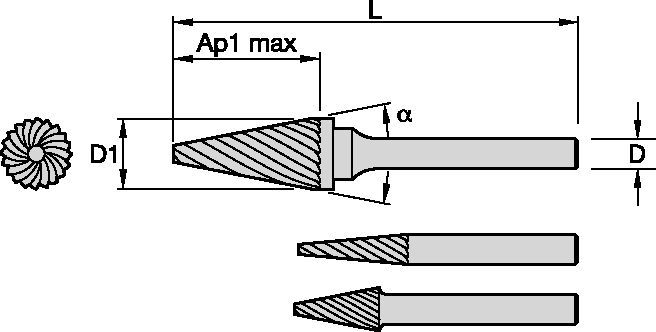

      Adapter Style Machine Side Straight-Cylindrical
      Shank Style C
      [KRA] ANSI Approach Angle 22.000
      [D1] Effective Cutting Diameter 6.3500 mm
      [D1] Effective Cutting Diameter .2500 in
      [D] Adapter / Shank / Bore Diameter 6.35 mm
      [D] Adapter / Shank / Bore Diameter .25 in
      [AP1MAX] 1st Maximum Cutting Depth 12.7000 mm
      [AP1MAX] 1st Maximum Cutting Depth .5000 in
      [L] Overall Length 50.8000 mm
      [L] Overall Length 2.000 in
      See all Product Variants

      Features and benefits

      • Pointed cone shape.

      • Shank styles A, B, C, and D — see page P5 for shank style definitions.
