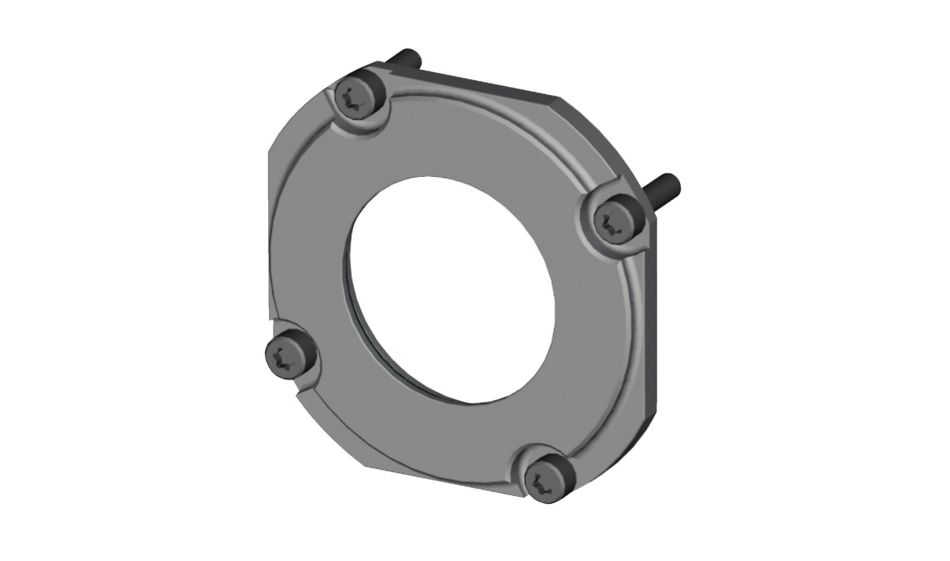

TG Nut • Coolant Disk Assembly
TG Round Flush-Face Locknuts
Material Number2980894
ISO Catalog IDTG100CDAANSI Catalog IDTG100CDA
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
Material Number | 2980894 |
ISO Catalog ID | TG100CDA |
ANSI Catalog ID | TG100CDA |

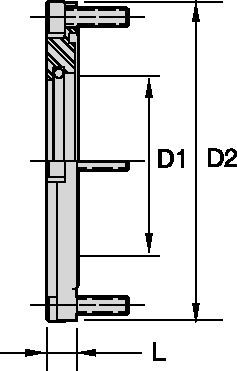

[D1] Adapter / Shank / Bore Diameter | 33.5 mm |
[D1] Adapter / Shank / Bore Diameter | 1.3189 in |
[D2] Body Diameter 1 Workpiece Side | 60 mm |
[D2] Body Diameter 1 Workpiece Side | 2.362 in |
[L] Overall Length | 5.65 mm |
[L] Overall Length | 0.222 in |
Locknut reference | LNATGF100M |
ER coolant disk reference | ER40 |
Torque Catalog Newton Meters | 25 |
Torque Catalog Foot Pounds | 18 |
Features and benefits
- TG flush mount, coolant-capable locknuts, and coolant disks/caps can be used on all standard TG collet chucks to seal standard TG collets.
- Face is completely flush.
- Includes the original ball bearing race design.
- External diameter is the same as existing global round TG locknut.
- Operated by a standard open-ended wrench or the original hook-style wrench.
- TG flush mount coolant capable locknuts and coolant disks/caps are interchangeable with existing designs.
- Utilizes standard TG collets.
