| SAP Material Number | 5549212 |
| ISO Catalog Number | VNGP220408 |
| ANSI Catalog Number | VNGP432 |
| Grade | WU10HT |

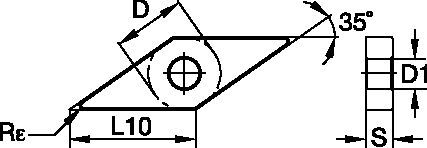

| [D] Insert IC Size | 12.7000 mm |
| [D] Insert IC Size | .5000 in |
| [L10] Insert Cutting Edge Length | 22.1420 mm |
| [L10] Insert Cutting Edge Length | .8717 in |
| [S] Insert Thickness | 4.7600 mm |
| [S] Insert Thickness | .1875 in |
| [Rε] Corner Radius | 0.8000 mm |
| [Rε] Corner Radius | .0312 in |
| [D1] Insert Hole Size | 5.1600 mm |
| [D1] Insert Hole Size | .2031 in |
A hard, low binder content, unalloyed WC/Co fine-grained uncoated grade. Exceptional edge wear resistance combined with very high strength for machining titanium, cast irons, austenitic stainless steels, non-ferrous metals, non-metals, and most high-temperature alloys. Superior thermal deformation and depth-of-cut notch resistance. The grain structure is well controlled for minimal pits and flaws, which contributes to long, reliable service.
