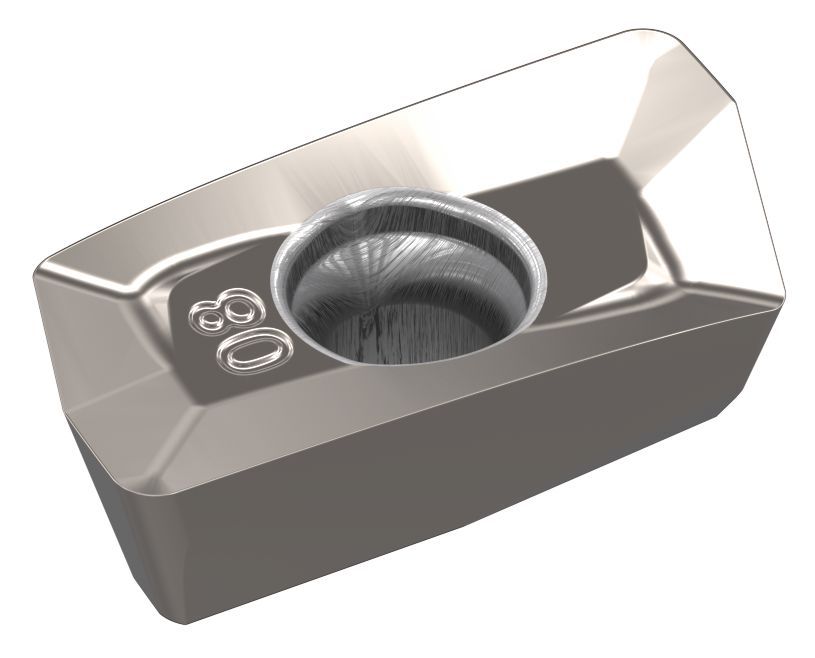

Inserts • XDCT-ALP
Inserts • XDCT-ALP
Inserts • XDCT-ALP
Inserts • XDCT-ALP

0°/90° Shoulder Mills • VSM11™

Inserts • XDCT-ALP

Metric
Inch
SAP Material Number 5933940
ISO Catalog Number XDCT110404PDFRALP
ANSI Catalog Number XDCT1101RALP
Grade WN10HM
Cutting Edges per Insert 2
[LI] Insert Length 13.4300
[LI] Insert Length .5290
[BS] Corner Facet Length 2.0900
[BS] Corner Facet Length .0820
[S] Insert Thickness 4.0000
[S] Insert Thickness .1570
[W] Insert Width 6.9000
[W] Insert Width .2720
[Rε] Corner Radius 0.4000
[Rε] Corner Radius .0160
Average Chip Thickness [HM] 0.0200
Average Chip Thickness [HM] .0008
See all Product Variants

Workpiece Material

K
N

Features and benefits

  • -ALP is the first choice for roughing and finishing of aluminium alloys.

Grades

  • WN10HM
    K
    N
  • WN25PM
    N
