Shank: Duo-Lock Coupling
Through Coolant: Axial: Drilling
Balance (G 2.5/25,000)
Shank - SK CAT(CV) ANSI B5.50 5/8"–11 unc DrawbarDownloaded file will be available after import in the {{cadTool}} tool library.
| Номер материала | 6136938 |
| Идентификатор каталога ISO | CV40BDL12162 |
| Идентификатор каталога ANSI | CV40BDL12162 |

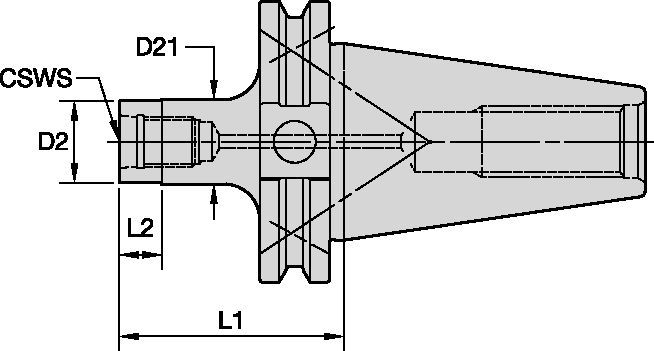

| [CSWS] System Size Workpiece Side | DL12 |
| [D2] Body Diameter 1 Workpiece Side | 12.2 mm |
| [D2] Body Diameter 1 Workpiece Side | .48 in |
| [D21] Body Diameter 2 Workpiece Side | 12.7 mm |
| [D21] Body Diameter 2 Workpiece Side | .5 in |
| [L1] Gage Length | 41.15 mm |
| [L1] Gage Length | 1.62 in |
| [L2] Usable Length | 6.3 mm |
| [L2] Usable Length | .248 in |
| Weight Pounds | 1.78 |
