| SAP Material Number | 3670073 |
| ISO Catalog Number | KM80TSSTAR2525M |
| ANSI Catalog Number | KM80TSSTAR2525M |

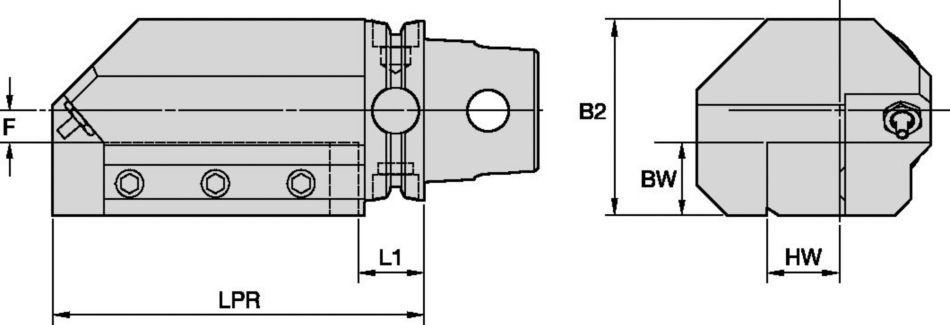

| [B2] Overall Width | 86.5000 mm |
| [B2] Overall Width | 3.406 in |
| [BW] Shank Width | 25.0000 mm |
| [BW] Shank Width | .9840 in |
| [F] F Dimension | 21.0000 mm |
| [F] F Dimension | .8270 in |
| [HW] Shank Height | 25.0000 mm |
| [HW] Shank Height | .9840 in |
| [L1] Gage Length | 30.0000 mm |
| [L1] Gage Length | 1.181 in |
| [LPR] Protruding Length | 135.0000 mm |
| [LPR] Protruding Length | 5.315 in |
| Torque Newton Meters | 55.000 |
| Weight Kilograms | 6.60 |
Shank - KM-TS ISO 26622
Shank - KM-TS ISO 26622
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) MaximumНомер по каталогу ISO
