      ISO/ANSI Carbide Inserts
      ISO/ANSI Carbide Inserts
      ISO/ANSI Carbide Inserts
      ISO/ANSI Carbide Inserts
      Select the files you wish to request
      Download CAD Drawings

      TCGT-AL1

      ISO/ANSI Carbide Inserts

      Metric
      Inch
      SAP Material Number 2006991
      ISO Catalog Number TCGT110204AL1
      ANSI Catalog Number TCGT2151AL1
      Grade HWK10

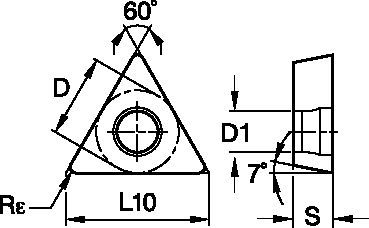

      [D] Insert IC Size 6.3500 mm
      [D] Insert IC Size .2500 in
      [L10] Insert Cutting Edge Length 11.0000 mm
      [L10] Insert Cutting Edge Length .4331 in
      [S] Insert Thickness 2.3800 mm
      [S] Insert Thickness .0938 in
      [Rε] Corner Radius 0.4000 mm
      [Rε] Corner Radius .0156 in
      [D1] Insert Hole Size 2.8000 mm
      [D1] Insert Hole Size .1102 in
      See all Product Variants

      Uses and application

      • TurningTurning
      • FacingFacing
      • ChamferingChamfering
      • ProfilingProfiling
      • BoringBoring

      Workpiece Materials

      N Non-Ferrous

      Grades

      • HWK10
        HWK10

        Uncoated carbide. Micro-grain carbide with high cutting edge stability. Light machining. For non-ferrous metals and non-metals.

        N Non-Ferrous
