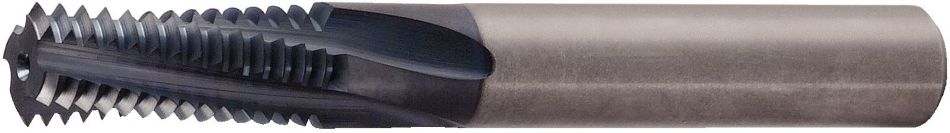

    GTM11 • Metric and Metric Fine • Through Coolant

    Victory™ Solid Carbide Thread Mills • Blind and Through Holes

    Material Number4138494

    ISO Catalog IDGTM115004ANSI Catalog IDGTM115004

    GTM11 Thru Cool M/MF Tapping - 4138494 - WIDIA
    GTM11 Thru Cool M/MF Tapping - 4138494 - WIDIA
    GTM11 Thru Cool M/MF Tapping - 4138494 - WIDIA
    Open expanded view
    GTM11 Thru Cool M/MF Tapping - 4138494 - WIDIA
    GTM11 Thru Cool M/MF Tapping - 4138494 - WIDIA
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Threading: Through HoleThreading: Through Hole
    • Threading: Blind HoleThreading: Blind Hole
    • Through Coolant: Axial: TappingThrough Coolant: Axial: Tapping
    • HMHM
    • Manufacturer’s Specs: MManufacturer’s Specs: M
    • Manufacturer’s Specs: MFManufacturer’s Specs: MF
    • Drilling Depth: 2xDrilling Depth: 2x
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 4138494
    Metric
    Inch
    Material Number4138494
    ISO Catalog IDGTM115004
    ANSI Catalog IDGTM115004
    GradeWU13PV
    [TDZ] Thread Diameter SizeM6X1
    [D1] Effective Cutting Diameter4.8 mm
    [D1] Effective Cutting Diameter0.189 in
    [AP1MAX] 1st Maximum Cutting Depth12.48 mm
    [AP1MAX] 1st Maximum Cutting Depth0.4913 in
    [L] Overall Length 55 mm
    [L] Overall Length 2.1654 in
    [LS] Shank Length 36 mm
    [LS] Shank Length 1.4173 in
    [D] Adapter / Shank / Bore Diameter6 mm
    [D] Adapter / Shank / Bore Diameter0.2362 in
    Number of Effective Cutting Edges on Face3
    See all Product Variants

    Uses and application

    • Threading: Through HoleThreading: Through Hole
    • Threading: Blind HoleThreading: Blind Hole
    • Through Coolant: Axial: TappingThrough Coolant: Axial: Tapping
    • HMHM
    • Manufacturer’s Specs: MManufacturer’s Specs: M
    • Manufacturer’s Specs: MFManufacturer’s Specs: MF
    • Drilling Depth: 2xDrilling Depth: 2x

    Grades

    WU13PV

    WU13PV

    Coated carbide. PVD carbide substrate with heat-resistant TiAlN coating.
    Universal grade for thread milling most materials.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets
    Create Solution to find the perfect compatible parts for your tool.
