Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) Maximum

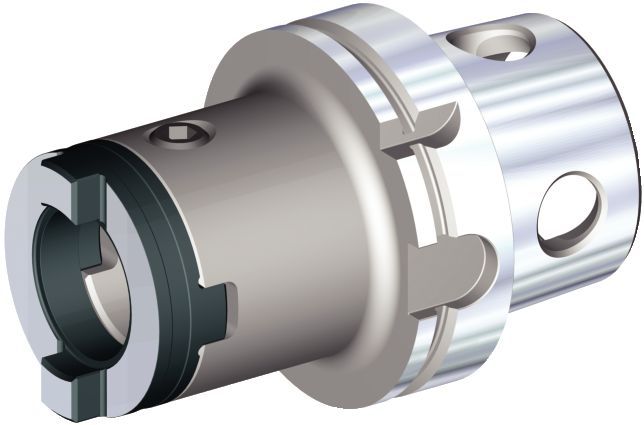

Shank: KM4X™Downloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 4159439 |
| ISO Catalog ID | KM4X100HTS40085M |
| ANSI Catalog ID | KM4X100HTS40085M |

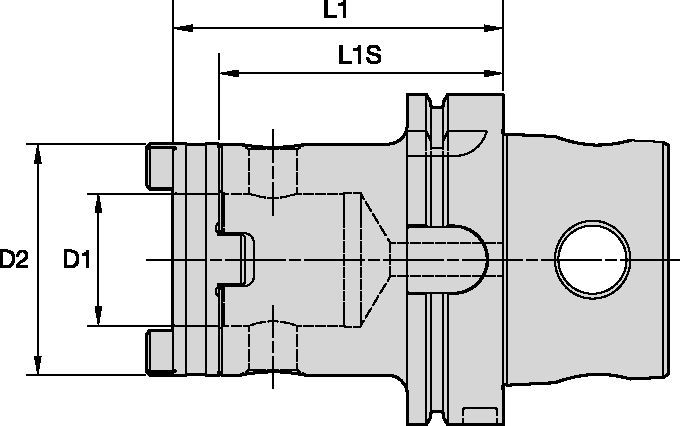

| [D1] Adapter / Shank / Bore Diameter | 40 mm |
| [D1] Adapter / Shank / Bore Diameter | 1.58 in |
| [D2] Body Diameter 1 Workpiece Side | 70 mm |
| [D2] Body Diameter 1 Workpiece Side | 2.756 in |
| [L1] Gage Length | 98.9 mm |
| [L1] Gage Length | 3.894 in |
| [L1S] Secondary Tool Length | 85 mm |
| [L1S] Secondary Tool Length | 3.3465 in |
| Torque Catalog Foot Pounds | 26 |
| Weight Kilograms | 3.76 |
Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) MaximumShank: KM4X™Create Solution to calculate Feeds and Speeds
