    Product Similar To:

    Back To | Modify Similar To

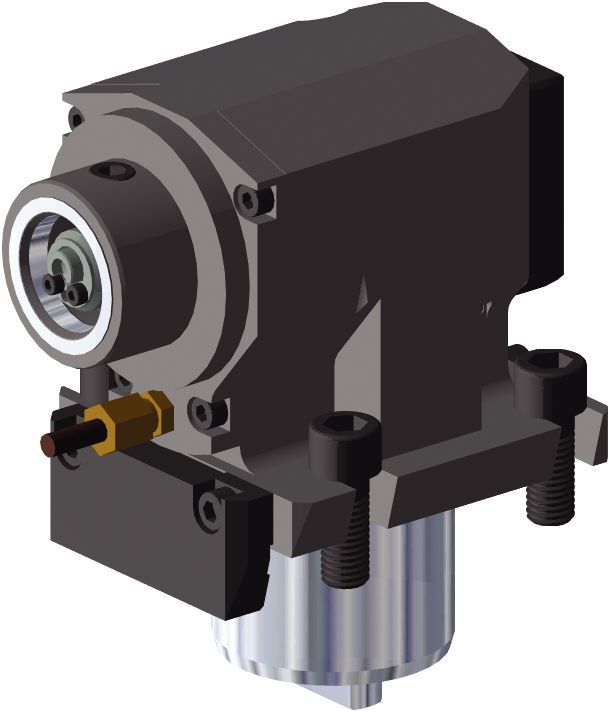

    Driven Tool Radial • KM™ • TACU009KM40DR60907352, TACU009KM40DR60907354

    Okuma™ • Driven Tool Radial • KM™ • MMC 009

    Material Number6411221

    ISO Catalog IDTACU009KM40DR60907354ANSI Catalog IDTACU009KM40DR60907354

    6411221 - Kennametal
    6411221 - Kennametal
    6411221 - Kennametal
    Open expanded view
    6411221 - Kennametal
    6411221 - Kennametal
    Generic representation
    List Price
    $6,032.91/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 6411221
    Metric
    Inch
    Material Number6411221
    ISO Catalog IDTACU009KM40DR60907354
    ANSI Catalog IDTACU009KM40DR60907354
    [CSWS] System Size Workpiece SideKM40
    Machine Mount Code009
    [B2] Overall Width 144 mm
    [B2] Overall Width 5.6693 in
    [D] Adapter / Shank / Bore Diameter60 mm
    [D] Adapter / Shank / Bore Diameter2.362 in
    [F] F Dimension 86.5 mm
    [F] F Dimension 3.406 in
    [H2] Overall Height 98 mm
    [H2] Overall Height 3.86 in
    [L] Overall Length 169 mm
    [L] Overall Length 6.654 in
    [L1] Gage Length70 mm
    [L1] Gage Length2.756 in
    [LPR] Protruding Length 107 mm
    [LPR] Protruding Length 4.213 in
    Torque Machine Spindle Nm50
    Coolant Pressure Bar70
    Coolant Pressure PSI1000
    Coolant DeliveryI/E
    [CS1] Coolant Supply Exit SizeG 1/8
    Max RPM6000
    Weight Kilograms7.63
    Torque Catalog Newton Meters12-16
    Torque Catalog Foot Pounds9-12
    See all Product Variants

    Uses and application

    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622

    Features and benefits

    Machine Series:
    • Genos L300 MW/MYW
    • LB/LU 2000-3000 EX M/MY/MW/MYW
    • MULTUS U3000, 4000 2S
