    List 5103 • AluSurf™

    Series 5103 • AluSurf™

    Material Number3484701

    ISO Catalog ID510318018..ANSI Catalog ID510318018..

    List 5103 • AluSurf™
    List 5103 • AluSurf™
    List 5103 • AluSurf™
    Open expanded view
    List 5103 • AluSurf™
    List 5103 • AluSurf™
    Generic representation
    List Price
    $237.89/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • M Stainless Steel
    • K Cast Iron
    • N Non-Ferrous
    • S High-Temp Alloys
    • H Hardened Materials
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Square EndCorner Style: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Helix Angle: 38°Helix Angle: 38°
    • 3857138571
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

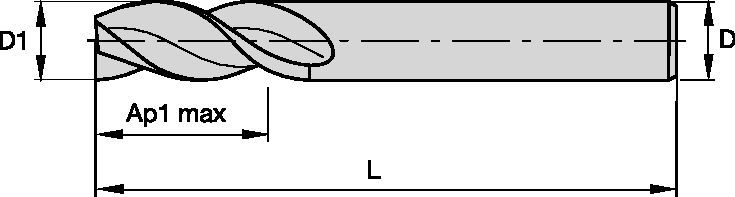

    Drawings for 3484701
    Metric
    Inch
    Material Number3484701
    ISO Catalog ID510318018..
    ANSI Catalog ID510318018..
    GradeUNCOATED
    Adapter Style Machine SideStraight-Cylindrical
    [D1] Effective Cutting Diameter18 mm
    [D1] Effective Cutting Diameter0.7087 in
    [D] Adapter / Shank / Bore Diameter18 mm
    [D] Adapter / Shank / Bore Diameter0.7087 in
    [AP1MAX] 1st Maximum Cutting Depth38 mm
    [AP1MAX] 1st Maximum Cutting Depth1.4961 in
    [L] Overall Length 100 mm
    [L] Overall Length 3.937 in
    [Z] Number of Flutes3
    See all Product Variants

    Workpiece Materials

    • Steel
    • Stainless Steel
    • Cast Iron
    • Non-Ferrous
    • High-Temp Alloys
    • Hardened Materials

    Uses and application

    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Square EndCorner Style: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Helix Angle: 38°Helix Angle: 38°
    • 3857138571

    Features and benefits

    • Centre cutting.
    • Unequal flute spacing.
    • Wiper facet design for improved floor finishes.
    • Standard items listed. Additional styles and coatings made to order.
