      LSE 90°

      Cutting Units • Laydown Threading

      Metric
      Inch

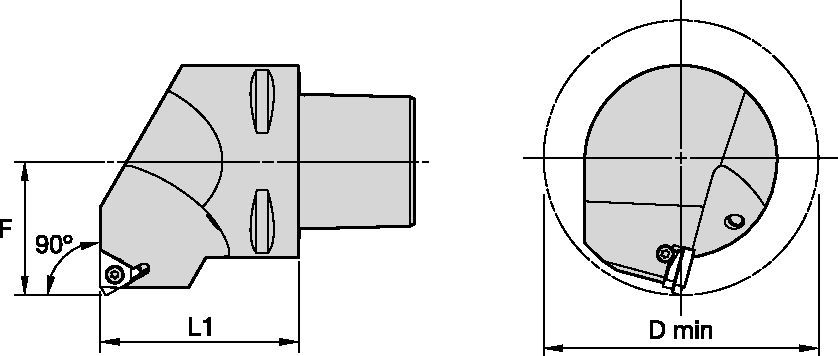

      SAP Material Number 4100718
      ISO Catalog Number PSC63LSEL22N
      ANSI Catalog Number PSC63LSEL22N
      [L1] Tool Length 65.0000 mm
      [L1] Tool Length 2.559 in
      [F] F Dimension 45.0000 mm
      [F] F Dimension 1.771 in
      [DM] Minimum Bore Diameter 90.0000 mm
      [DM] Minimum Bore Diameter 3.543 in
      Gage Insert LT22NL
      Weight Kilograms 1.48
      See all Product Variants

      Uses and application

      • Coolant - Through Coolant 1200 psiCoolant - Through Coolant 1200 psi
      • Shank - PSCShank - PSC
      • Coolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 80 bar Maximum
      • Manufacturer’s Specs: ISO 26623Manufacturer’s Specs: ISO 26623

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys
      H Hardened Materials

      Spare Parts for LSE 90°

      Spare Part
        Laydown Threading Shim Laydown Threading Shim
        Laydown Threading Shim
        Spare Part
          SCREW SHIM SCREW SHIM
          SCREW SHIM
          Spare Part
            INSERT SCR #8-32 UNC x 15 T20 INSERT SCR #8-32 UNC x 15 T20
            INSERT SCR #8-32 UNC x 15 T20
            Spare Part
              CLAMPING FINGER COMPLETE SET CLAMPING FINGER COMPLETE SET
              CLAMPING FINGER COMPLETE SET
