Face Mills • M1200

60° • Shell Mills • Metric

Features and benefits
  • Twelve cutting edges.

  • Higher Ap1 max with standard insert.

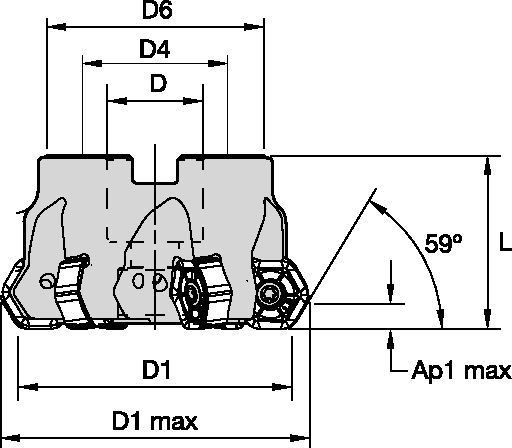

Product specifications
Product # 4152117
ISO Catalog Number M1200HD080Z05HN09
ANSI Catalog Number M1200HD080Z05HN09
[D1]Effective Cutting Dia mm 80
[D1MAX]Maximum Cutting Dia mm 88,52
[D]Adapter/Shank/Bore Dia mm 27,0
[D6] Hub Diameter Metric 60
[L] Overall Length Metric 50
[AP1MAX]1st Max Cut Depth mm 6
Number of Inserts 5
Max RPM 7900
Coolant Supply Yes
Weight Kilograms 1.05
Need help? Contact our customer service team.
Contact us

Shell Mills

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [D1]Effective Cutting Dia mm [D1MAX]Maximum Cutting Dia mm [D]Adapter/Shank/Bore Dia mm [D4]Bolt Circle 1 Metric [D6] Hub Diameter Metric [L] Overall Length Metric [AP1MAX]1st Max Cut Depth mm Number of Inserts Max RPM Coolant Supply Weight Kilograms
4152116 M1200HD063Z06HN09 M1200HD063Z06HN09 63 71,54 22,0 50 40 6 6 10100 Yes .55
4152117 M1200HD080Z05HN09 M1200HD080Z05HN09 80 88,52 27,0 60 50 6 5 7900 Yes 1.05
4152118 M1200HD080Z08HN09 M1200HD080Z08HN09 80 88,52 27,0 60 50 6 8 7900 Yes 1.10
4152119 M1200HD100Z06HN09 M1200HD100Z06HN09 100 108,5 32,0 80 50 6 6 6300 Yes 1.61
4152120 M1200HD100Z08HN09 M1200HD100Z08HN09 100 108,5 32,0 80 50 6 8 6300 Yes 1.63
4152121 M1200HD125Z08HN09 M1200HD125Z08HN09 125 133,5 40,0 90 63 6 8 5050 Yes 2.88
4152123 M1200HD160Z09HN09 M1200HD160Z09HN09 160 168,5 40,0 66,70 110 63 6 9 3900 Yes 4.62
