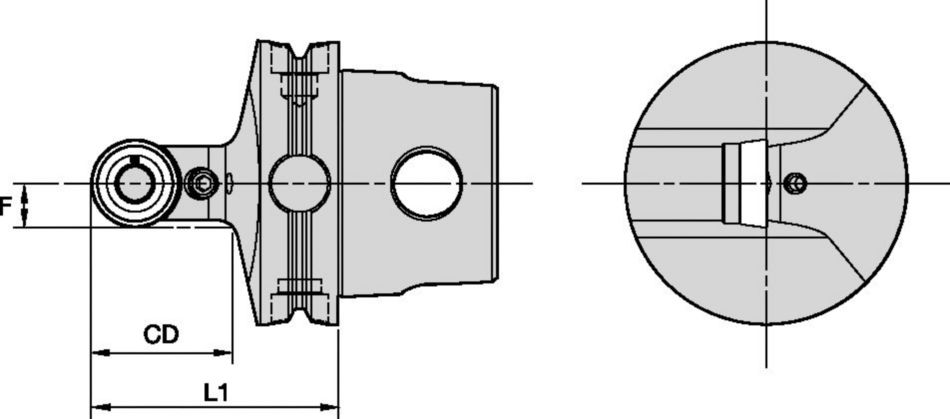

flayout Image

Download CAD Drawings

KM80TS™ Cutting Units

P-Clamping

Product specifications

Product #	3662606
ISO Catalog Number	KM80TSPRDCN20
ANSI Catalog Number	KM80TSPRDCN20
[L1] Tool Length Metric	70
[L1] Tool Length Inch	2.755
[F] F Dimension Metric	10
[F] F Dimension Inch	.3937
[CD]Cutting Depth Metric	40,15
[CD]Cutting Depth Inch	1.580
Catalog Gage Insert 1	RCMT2006M0
Weight Kilograms	1.48
Weight Pounds	3.26

Need help? Contact our customer service team.

PRDC 90°

Filter By:

Product #	ISO Catalog Number	ANSI Catalog Number	Grade	[L1] Tool Length Metric	[L1] Tool Length Inch	[F] F Dimension Metric	[F] F Dimension Inch	[CD]Cutting Depth Metric	[CD]Cutting Depth Inch	Catalog Gage Insert 1	Weight Kilograms	Weight Pounds
3662606	KM80TSPRDCN20	KM80TSPRDCN20		70	2.755	10	.3937	40,15	1.580	RCMT2006M0	1.48	3.26
3662607	KM80TSPRDCN25	KM80TSPRDCN25		70	2.755	12,50	.4921	40,15	1.580	RCMX2507M0RP	1.54	3.39

Product Usage

Uses and application

Uses and application

Shank - KM-TS ISO 26622
Shank - KM-TS ISO 26622
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) Maximum

Spare Parts for PRDC 90°

SHIM

FIX PERFECT PIN

FIX PERFECT PIN

SET SCREW DIN 915 M8X20-45H

SET SCREW DIN 915 M8X20-45H
