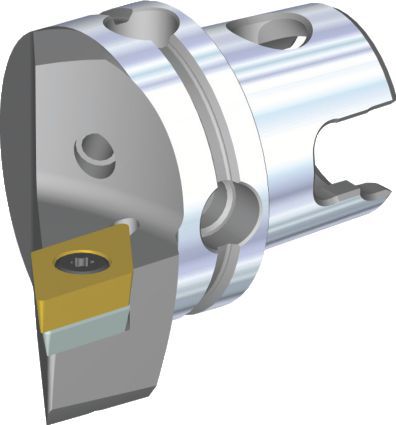

KM40TS™ Cutting Units

S-Clamping

Product specifications
Product # 3960007
ISO Catalog Number KM40TSSDJCR15
ANSI Catalog Number KM40TSSDJCR15
[L1] Tool Length Metric 40
[L1] Tool Length Inch 1.574
[F] F Dimension Metric 27
[F] F Dimension Inch 1.063
Catalog Gage Insert 1 DC..15
Weight Kilograms .24
Weight Pounds .53
Need help? Contact our customer service team.
Contact us

SDJC 93°

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [L1] Tool Length Metric [L1] Tool Length Inch [F] F Dimension Metric [F] F Dimension Inch Catalog Gage Insert 1 Weight Kilograms Weight Pounds
3960004 KM40TSSDJCL11 KM40TSSDJCL11 40 1.574 27 1.063 DC..11 .24 .54
3960005 KM40TSSDJCR11 KM40TSSDJCR11 40 1.574 27 1.063 DC..11 .24 .54
3960006 KM40TSSDJCL15 KM40TSSDJCL15 40 1.574 27 1.063 DC..15 .24 .52
3960007 KM40TSSDJCR15 KM40TSSDJCR15 40 1.574 27 1.063 DC..15 .24 .53

Product Usage

Uses and application

  • Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622
  • Coolant - Through Coolant 100 bar (1500 psi) Maximum
  • Coolant - Through Coolant 100 bar (1500 psi) Maximum

Spare Parts for SDJC 93°

SKDP453  HARDWARE
SKDP453 HARDWARE
SCREW SHIM M6X0.75/M
SCREW SHIM M6X0.75/M
INSERT SCR M4-0.5 X 14 T15
INSERT SCR M4-0.5 X 14 T15
