Screw-On Adapter for Modular Milling Cutters
Screw-On Adapter for Modular Milling Cutters
Screw-On Adapter for Modular Milling Cutters
Screw-On Adapter for Modular Milling Cutters
Select the files you wish to request
Downloads
Request {{cadTool}} format
{{cadTool}} format is not available

ST-KM4X Metric • KM4X63

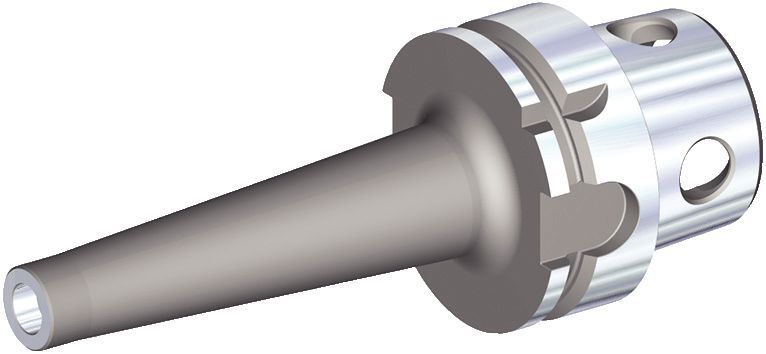

Screw-On Adapter for Modular Milling Cutters

Metric
Inch
SAP Material Number 5552450
ISO Catalog Number KM4X63ST16059M
ANSI Catalog Number KM4X63ST16059M
[DCB] Connection Bore Diameter 17 mm
[DCB] Connection Bore Diameter .67 in
[D2] Body Diameter 1 Workpiece Side 24 mm
[D2] Body Diameter 1 Workpiece Side .945 in
[D21] Body Diameter 2 Workpiece Side 33 mm
[D21] Body Diameter 2 Workpiece Side 1.299 in
Connection Thread Size [G] M16X2
[L1] Gage Length 59 mm
[L1] Gage Length 2.323 in
[L2] Usable Length 10 mm
[L2] Usable Length .394 in
[L21] Usable Length 33.05 mm
[L21] Usable Length 1.301 in
Weight Kilograms 0.83
See all Product Variants

Uses and application

  • Balance: G 6.3 @ 15,000Balance: G 6.3 @ 15,000
  • Shank - Screw-OnShank - Screw-On
  • Milling - Through CoolantMilling - Through Coolant
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Shank: KM4X™Shank: KM4X™

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for ST-KM4X Metric • KM4X63

Spare Part
    COOLANT TUBE WRENCH HSK 50 COOLANT TUBE WRENCH HSK 50
    COOLANT TUBE WRENCH HSK 50
    Spare Part
      KM4X63 COOLANT ASSEMBLY UNIT KM4X63 COOLANT ASSEMBLY UNIT
      KM4X63 COOLANT ASSEMBLY UNIT
