| Material Number | 4171122 |
| ISO Catalog ID | TNMG270616UR |
| ANSI Catalog ID | TNMG544UR |
| Grade | WP15CT |

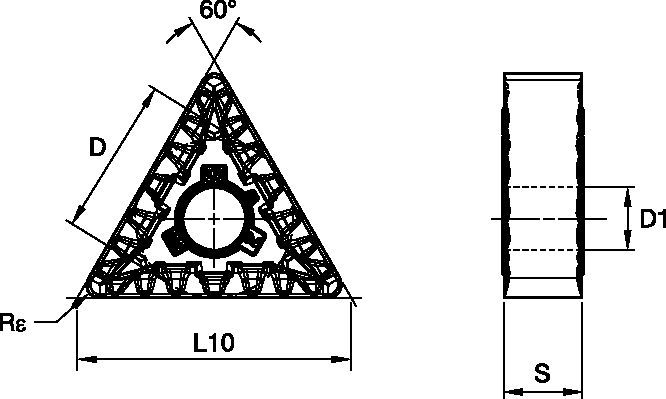

| [D] Insert IC Size | 15.875 mm |
| [D] Insert IC Size | 0.625 in |
| [L10] Insert Cutting Edge Length | 27.496 mm |
| [L10] Insert Cutting Edge Length | 1.0825 in |
| [S] Insert Thickness | 6.35 mm |
| [S] Insert Thickness | 0.25 in |
| [Rε] Corner Radius | 1.6 mm |
| [Rε] Corner Radius | 0.063 in |
| [D1] Insert Hole Size | 6.35 mm |
| [D1] Insert Hole Size | 0.25 in |
Grades
WP15CT
Coated carbide. MT-CVD/CVD — TiN-TiCN-Al2O3-ZrCN. Good balance of wear resistance
and toughness properties. High-productivity machining on smooth to lightly interrupted cuts. For steels.
